Mercusys BE9300 Tri-Band Wi‑Fi 7 Router (MR47BE)
Blazing-Fast Tri-Band Wi‑Fi 7 Performance
Experience next-generation wireless performance with the Mercusys BE9300 Tri-Band Wi‑Fi 7 Router.
-
Up to 9.3 Gbps tri-band speeds for high-throughput connectivity
- Smooth 4K/8K streaming, immersive AR/VR gaming, and ultra-fast downloads
- Compatible with 802.11be/ax/ac/a/b/g/n Wi‑Fi standards
Wi‑Fi 7 Advantages
Wi‑Fi 7 brings your network to the next level with:
-
320 MHz channels and 4K-QAM for greater capacity and higher data rates
-
Multi-Link Operation (MLO) to increase throughput, reduce latency, and enhance reliability
- Access to the 6 GHz band plus 5 GHz and 2.4 GHz for more spectrum and less interference
- Improved anti-jamming and higher overall efficiency

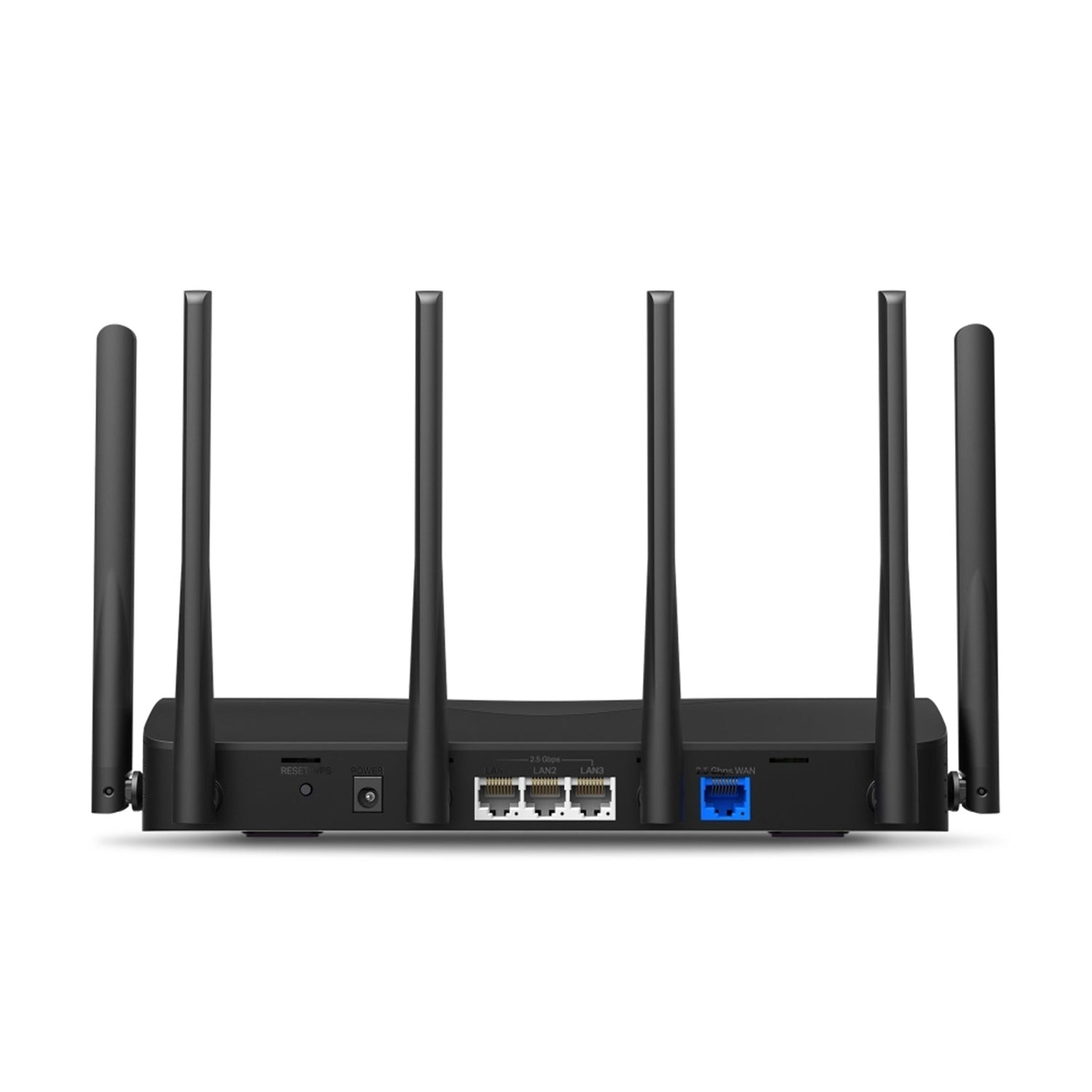

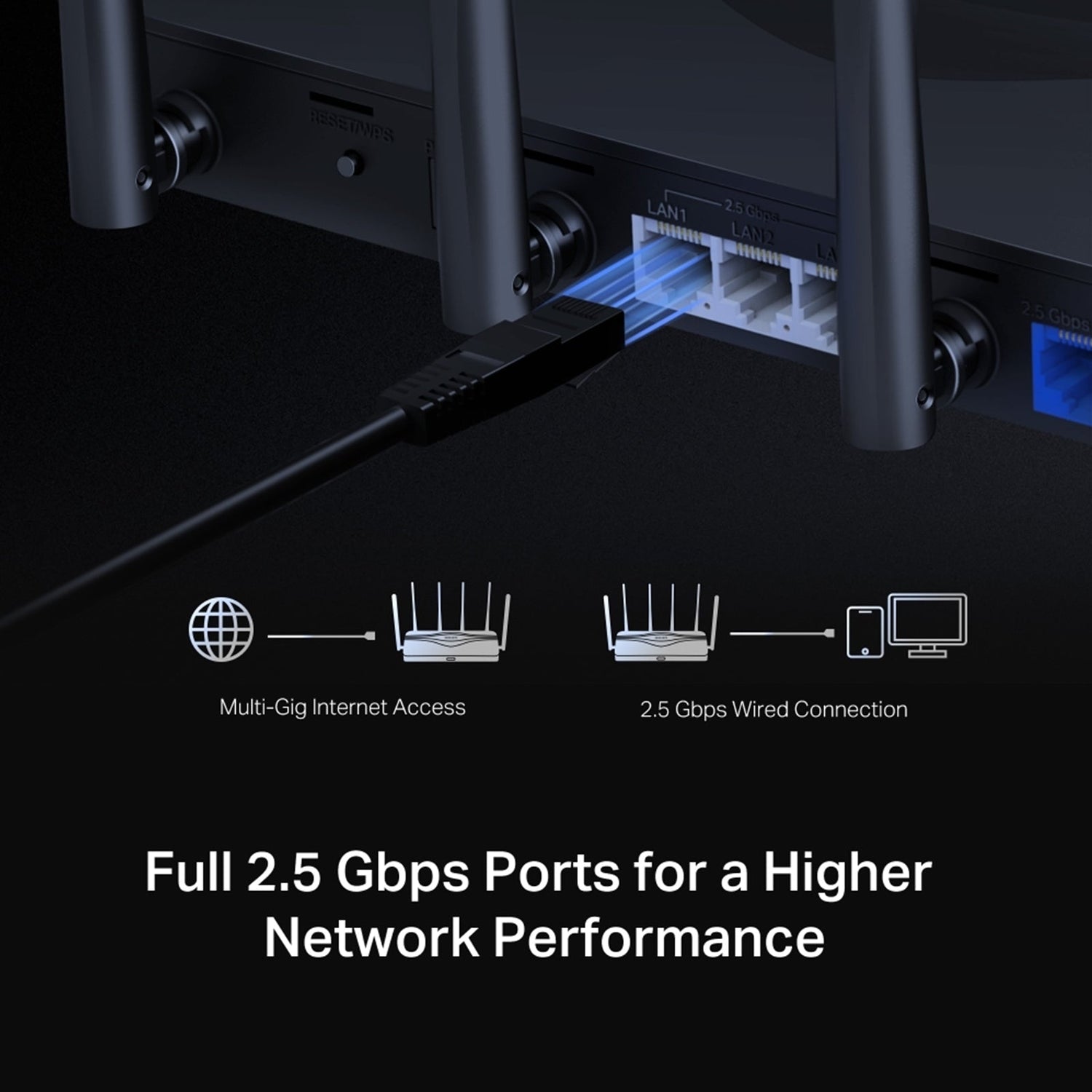

Full 2.5 Gbps Ports for Peak Wired Performance
Break through the 1G bottleneck with four 2.5 Gbps Ethernet ports:
-
1 × 2.5 Gbps WAN port
-
3 × 2.5 Gbps LAN ports
Connect PCs, smart TVs, game consoles, or NAS devices for blazing-fast wired connections and to fully utilize your broadband speeds.
Maximized Coverage and Stronger Signals
Enjoy strong, stable Wi‑Fi across more of your home:
-
6 external high-gain omni-directional antennas with integrated signal amplifiers
-
Proprietary Wi‑Fi optimization and Beamforming technology
- More targeted signals that reach farther and penetrate walls more effectively
- Broader coverage, higher capacity, and reduced interference
Whole Home Coverage with EasyMesh
Extend your network seamlessly using EasyMesh:
-
EasyMesh-compatible with other EasyMesh routers and range extenders
- Create a whole home mesh network with one Wi‑Fi name and password
- Works with EasyMesh access points from multiple vendors
- Enjoy flexible, scalable, and seamless mesh Wi‑Fi throughout your home with no drops or lag when moving between rooms
Smart Parental Controls
Protect your children online and build a healthier digital environment:
-
Create user profiles for each family member
- Assign devices to profiles for tailored access controls
- Set online time limits
-
Block inappropriate websites
-
Pause internet access when needed
Easy Setup and App Management
Set up and manage your network in minutes with the MERCUSYS app:
- Guided, step-by-step setup in the app—no technical knowledge required
- Configure and control your Wi‑Fi at home or remotely
- Available on iOS and Android devices
Advanced Security with WPA3
Keep your personal network secure with the latest Wi‑Fi security standard:
-
WPA-PSK/WPA2-PSK/WPA3-SAE support
- Protection against brute-force attacks
-
Advanced Forward Secrecy to prevent data snooping even if session keys are compromised
-
128-bit encryption to actively defend against security threats and intruders
Specifications
Wireless
| Feature |
Details |
| Wireless Standards |
Compatible with 802.11be/ax/ac/a/b/g/n Wi‑Fi standards |
| Wi‑Fi Speeds (BE9300) |

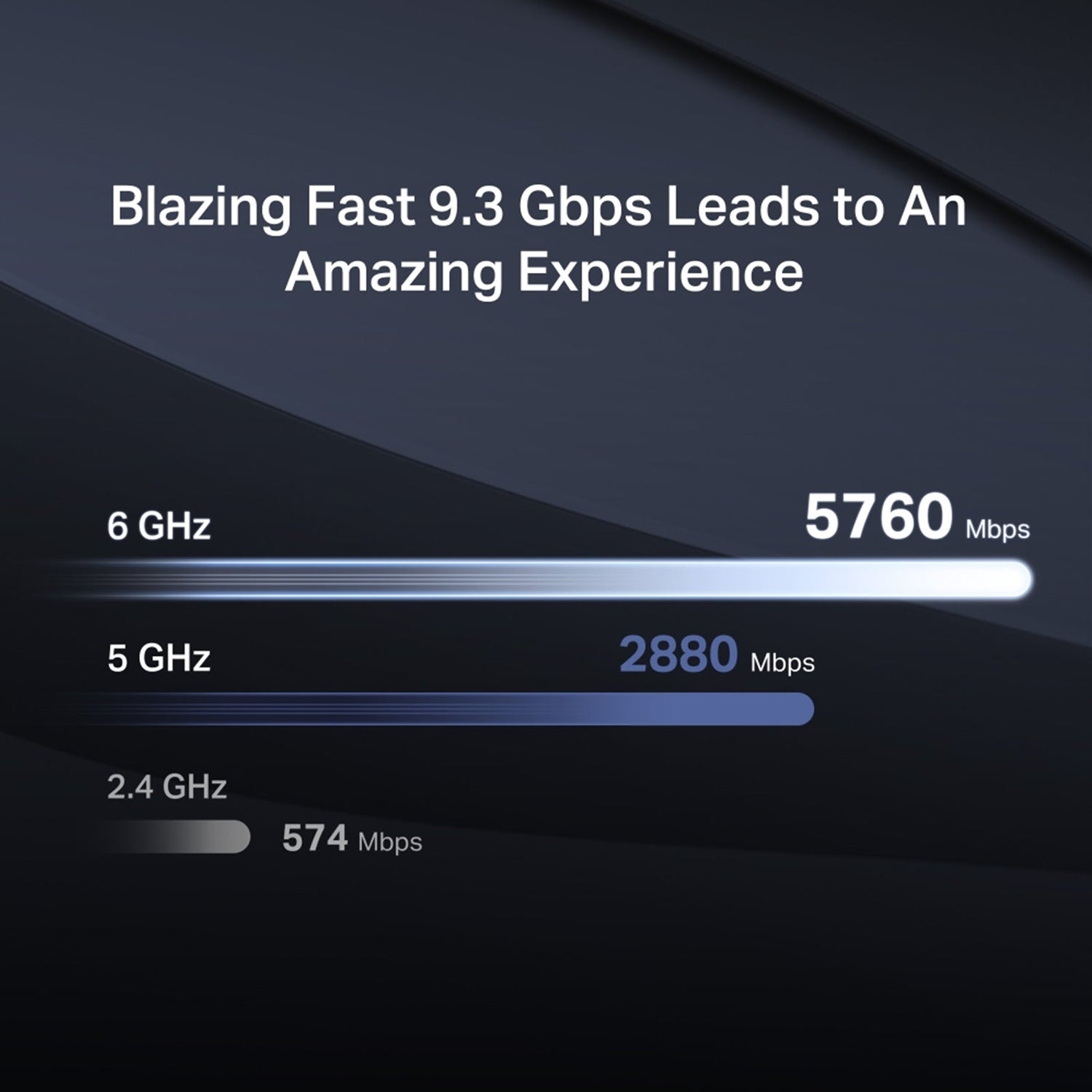

6 GHz: 5760 Mbps (802.11be) • 5 GHz: 2880 Mbps (802.11be) • 2.4 GHz: 574 Mbps (802.11ax) |
| Wireless Security |
WPA-PSK / WPA2-PSK / WPA3-SAE |
| Wireless Functions |
Multi-Link Operation (MLO), 320 MHz Channel, 4K-QAM, Multi-RUs |
Hardware
| Feature |
Details |
| Dimensions |
10.1 × 4.7 × 1.7 in (258 × 119 × 43.3 mm) |
| Interfaces |
1 × 2.5 Gbps WAN port + 3 × 2.5 Gbps LAN ports |
| Buttons |
Reset/WPS Button |
| Antennas |
6 × fixed omni-directional antennas |
Software & Network
| Feature |
Details |
| WAN Type |
Dynamic IP / Static IP / PPPoE / L2TP / PPTP |
| Management |
Access Control, Local Management, Remote Management |
| NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall Security |
SPI Firewall, IP and MAC Address Binding |
| Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network, 6 GHz Guest Network |
| DHCP |
DHCP Server, DHCP Client List |
| VPN |
OpenVPN / PPTP / L2TP / WireGuard VPN Server and Clients |
Network Services (Enabled by Default)
| Service |
Function |
Port(s) |
Protocol |
| Web Server |
Manage and configure device via web (HTTP/HTTPS) |
80/443 |
TCP |
| DHCP Server |
IP address assignment (DHCP) |
67 |
UDP |
| DNS |
DNS service |
53 |
TCP & UDP |
| App Management |
Manage and configure device via app |
20001 |
TCP |
|
|
20002 |
UDP |
Package Contents
- BE9300 Tri-Band Wi‑Fi 7 Router (MR47BE)
- Power adapter
- Quick Installation Guide
- RJ45 Ethernet cable
Environment
| Condition |
Range |
| Operating Temperature |
0°C–40°C (32°F–104°F) |
| Operating Humidity |
10%–90% non-condensing |
| Storage Humidity |
5%–90% non-condensing |
