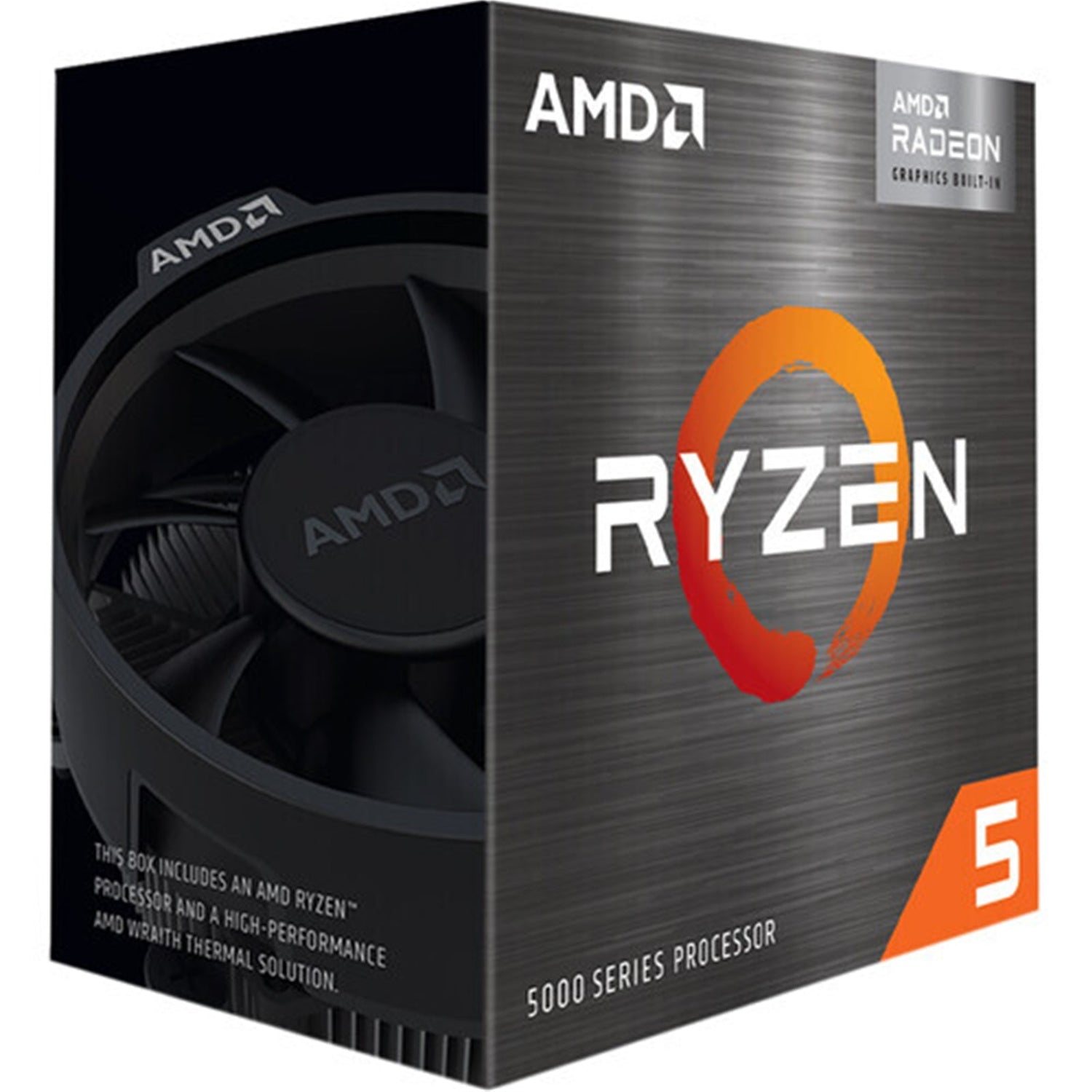

AMD Ryzen 5 5600GT 3.6GHz 6-Core AM4 Processor with Radeon Graphics
Unleash superior performance with the AMD Ryzen 5 5600GT processor. Designed for mainstream desktop platforms, this 6-core, 12-thread AM4 CPU delivers a fast 3.6GHz base clock and up to 4.6GHz max boost clock for a responsive and powerful computing experience.
With integrated Radeon Graphics, advanced "Zen 3" architecture, and support for DDR4 memory, the Ryzen 5 5600GT is built to elevate productivity, entertainment, and everyday multitasking.
Key Features
-
6 CPU cores / 12 threads with SMT for efficient multitasking
-
Base clock 3.6GHz, max boost up to 4.6GHz
-
"Zen 3" architecture with "Cezanne" codename
-
Integrated Radeon Graphics with 7 graphics cores at 1900 MHz
-
AM4 socket compatibility
-
Unlocked for overclocking
-
65W default TDP, configurable 45–65W
-
Includes AMD Wraith Stealth thermal solution (PIB and MPK)
-
DDR4 memory support up to 3200 MT/s
- PCIe 3.0 and NVMe boot/RAID support
Immersive Visuals with Radeon Graphics
Experience captivating visuals without the need for a separate graphics card. The integrated Radeon Graphics deliver exceptional graphics performance, enabling high-quality visuals for gaming, streaming, and creative projects.
Efficient Multitasking and Performance
With 12 threads and a 4.6GHz boost clock, the AMD Ryzen 5 5600GT is built for responsive multitasking and smooth performance. Easily handle diverse and demanding workloads for an exceptional computing experience.
Specifications
General
| Specification |
Details |
| Platform |
Boxed Processor |
| Market Segment |
Mainstream Desktop |
| Product Family |
AMD Ryzen Processors |
| Product Line |
AMD Ryzen 5 5000 G-Series Desktop Processors with Radeon Graphics |
| Consumer Use |
Yes |
| Commercial Use |
No |
| Regional Availability |
Global, China, NA, EMEA, APJ, LATAM |
| Former Codename |
"Cezanne" |
| Architecture |
"Zen 3" |
CPU
| Specification |
Details |
| # of CPU Cores |
6 |
| Multithreading (SMT) |
Yes |
| # of Threads |
12 |
| Max. Boost Clock |
Up to 4.6GHz |
| Base Clock |
3.6GHz |
| L1 Cache |
384KB |
| L2 Cache |
3MB |
| L3 Cache |
16MB |
| Default TDP |
65W |
| AMD Configurable TDP (cTDP) |
45–65W |
| Processor Tech (CPU Cores) |
TSMC 7nm FinFET |
| CPU Compute Die Size (CCD) |
180mm² |
| Package Die Count |
1 |
| Unlocked for Overclocking |
Yes |
| CPU Socket |
AM4 |
| Max Operating Temp (Tjmax) |
95°C |
| Launch Date |
1/8/2024* |
*Launch date as provided.
Thermal Solution
| Specification |
Details |
| Thermal Solution (PIB) |
AMD Wraith Stealth |
| Thermal Solution (MPK) |
AMD Wraith Stealth |
Operating System Support*
| Supported OS |
| Windows 11 - 64-Bit Edition |
| Windows 10 - 64-Bit Edition |
| RHEL x86 64-Bit |
| Ubuntu x86 64-Bit |
*Operating system support will vary by manufacturer.
Connectivity & Memory
| Specification |
Details |
| PCI Express Version |
PCIe 3.0 |
| NVMe Support |
Boot, RAID0, RAID1, RAID10 |
| System Memory Type |
DDR4 |
| Memory Channels |
2 |
| Max. Memory |
128GB |
| System Memory Subtype |
UDIMM |
| System Memory Spec |
Up to 3200 MT/s |
Max Memory Speed:
- 2x1R DDR4-3200
- 2x2R DDR4-3200
- 4x1R DDR4-2933
- 4x2R DDR4-2667
Integrated Graphics
| Specification |
Details |
| Integrated Graphics |
Yes |
| Graphics Model |
Radeon Graphics |
| Graphics Core Count |
7 |
| Graphics Frequency |
1900 MHz |
