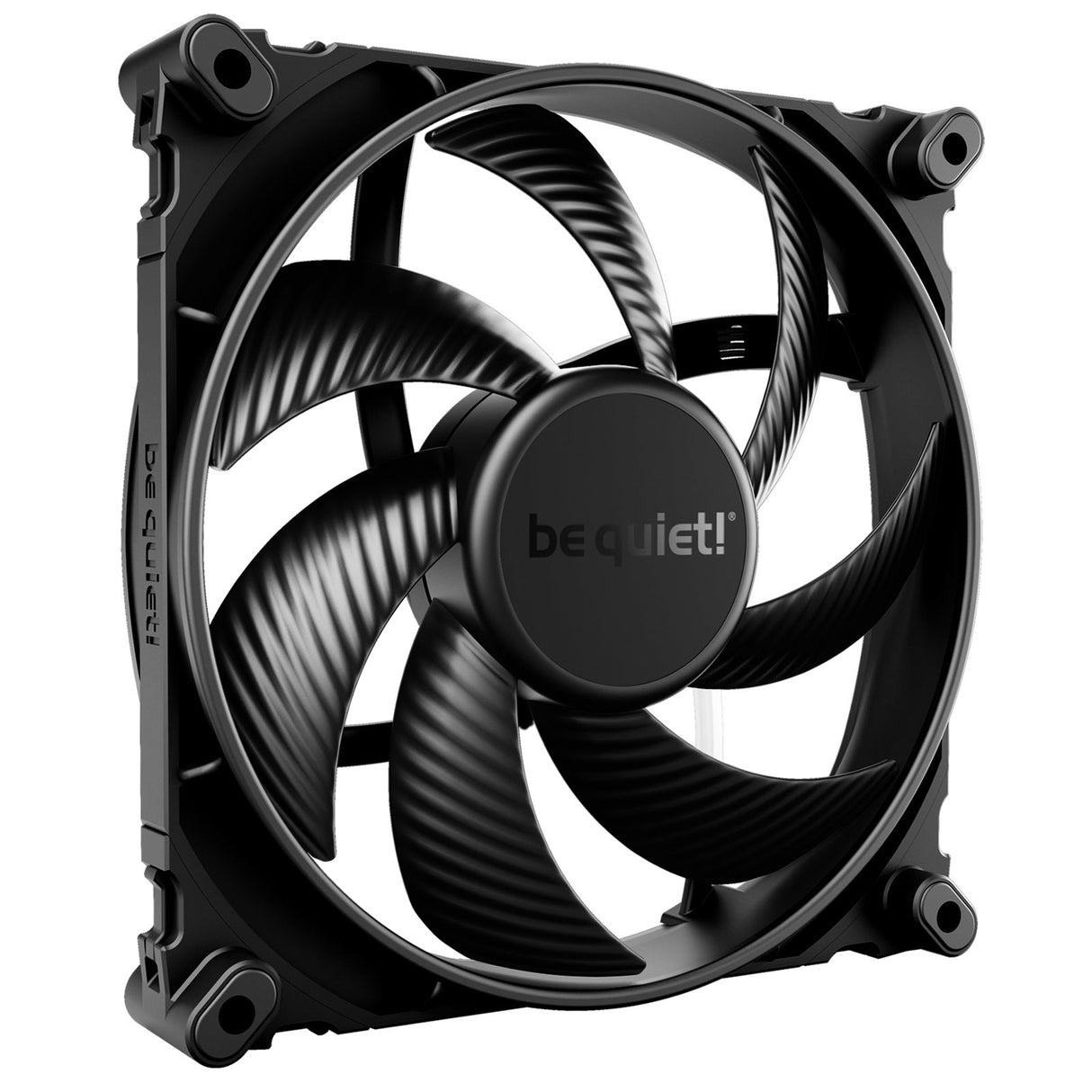

Silent Wings 4 140mm PWM High-Speed Fan
No-Compromise Silence and Performance
Silent Wings 4 140mm PWM high-speed delivers virtually inaudible operation while providing extremely high performance for demanding applications.
- Optimized fan blades for maximum performance on radiators and heat sinks
- Small tip clearance and funnel-shaped fan frame for extremely high air pressure
- Very silent operation even at maximum speed
- 6-pole fan motor and fluid-dynamic bearing for low vibration and smooth running
- Anti-vibration mounting with push-pin and screw installation options
- Super-long lifespan of up to 300,000 hours
- Elegant all-black design with high-grade fan sticker
- 5-year manufacturer warranty
Equally Quiet and Powerful
Silent Wings 4 140mm PWM high-speed is designed for versatile use in cases, on radiators, and on heat sinks. Silence-optimized fan blades and a funnel-shaped frame ensure there is no compromise between very quiet operation and top-tier performance.
Optimized for High-End Performance
The minimized distance between fan blades and frame provides:
- Extraordinary air pressure
- Significant increases in system performance
- Reliable support even for the most demanding applications

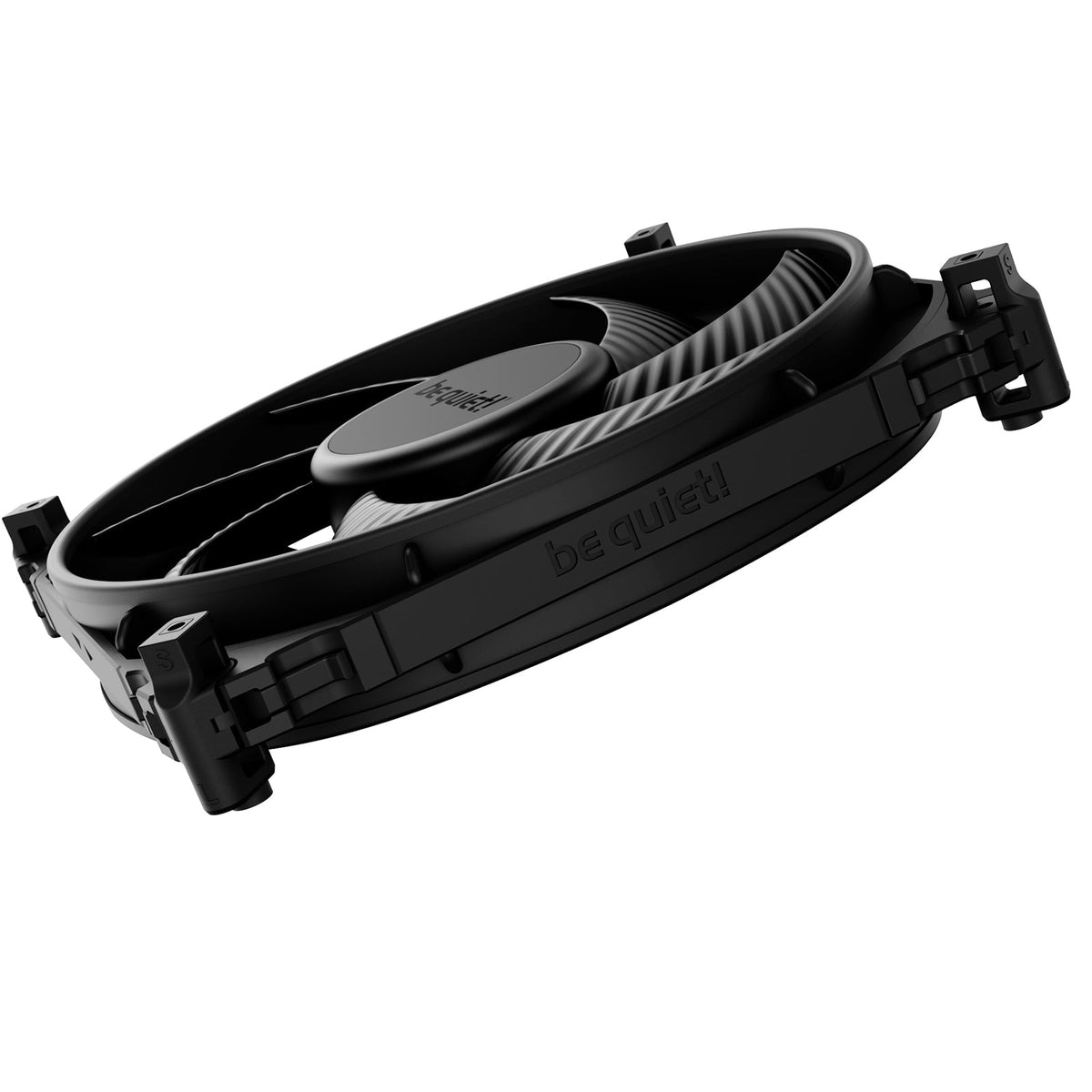

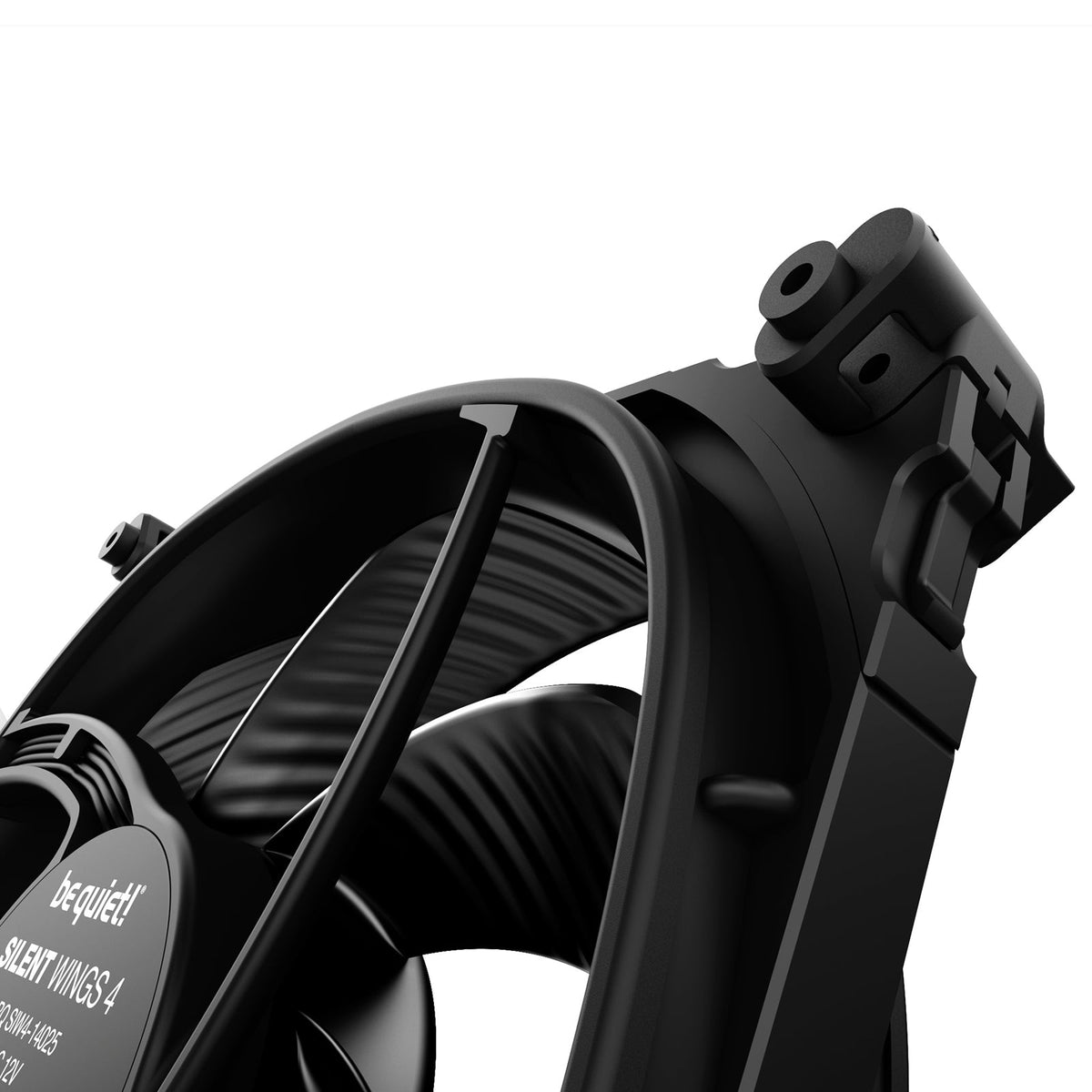

Flexible Mounting Options
Two mounting options are included:
Both mounting types enable virtually inaudible operation at regular speeds.
6-Pole Fan Motor
The 6-pole fan motor with 3 phases is engineered for:
- Very low power consumption
- Reduced vibration
- Quiet maximum operation of 29.3 dB(A)
With this technology, the fan is virtually inaudible at mid-speed.
Fluid-Dynamic Bearing (FDB)
The advanced FDB provides:
- Super-long lifespan of up to 300,000 hours
- Significantly reduced vibrations
- Support for nearly inaudible operation
Elegant All-Black Design
Whether used as a radiator fan or case fan, Silent Wings 4 140mm PWM high-speed stands out visually:
- All-black look
- High-grade fan sticker
- A combination of high performance and premium appearance
Specifications
General Data
| Parameter |
Value |
| Model |
Silent Wings 4 140mm PWM high-speed |
| Dimensions (mm) |
140 |
| Color option |
Black |
| Lighting |
- |
| Fan speed @ 100% PWM / 12V (rpm) |
1900 |
| Noise level @ 100% PWM / 12V (dB(A)) |
29.3 |
| Air flow @ 100% PWM / 12V (CFM / m³/h) |
78.4 / 133.20 |
| Air pressure @ 100% PWM / 12V (mm H₂O) |
2.36 |
Mechanical Specifications
| Parameter |
Value |

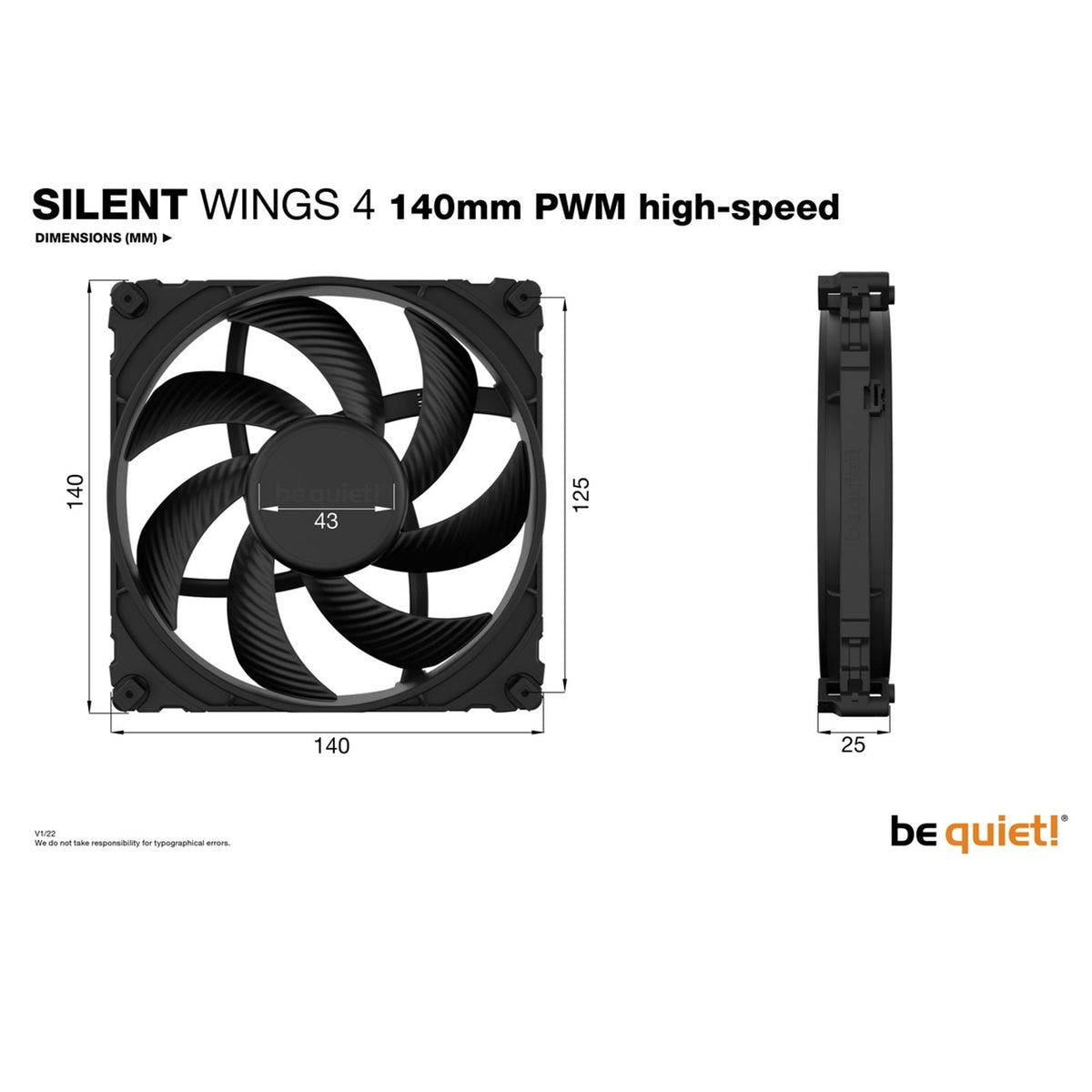

| Dimensions (L x W x H), (mm) |
140 x 140 x 25 |
| Weight incl. fixed cables (g) |
220 |
| Bearing technology |
FDB |
| Motor technology |
6-pole fan motor |
| Push pin fixing |
Yes |
| Screw fixing |
Yes |
Cables / Connectors
| Parameter |
Value |
| Daisy chain for lighting signal |
- |
| Lighting connector |
- |
| Connector |
4-pin PWM |
| Cable length (mm) |
500 |
| Cable sleeve |
Yes |
Performance / Noise
| Parameter |
Value |
| Air flow @ 100% PWM / 12V (CFM / m³/h) |
78.4 / 133.20 |
| Air pressure @ 100% PWM / 12V (mm H₂O) |
2.36 |
| Noise level @ 100% PWM / 12V (dB(A)) |
29.3 |
| Lifespan (h / 25°C) |
300,000 |
Electrical Specifications
| Parameter |
Value |
| Rated voltage DC (V) |
12 |
| Operating voltage DC (V) |
5 – 13.2 |
| Current consumption (A) |
0.40 |
| Safety current (A) |
0.40 |
| Input power (W) |
4.8 |
| Rated current LED (A) |
- |

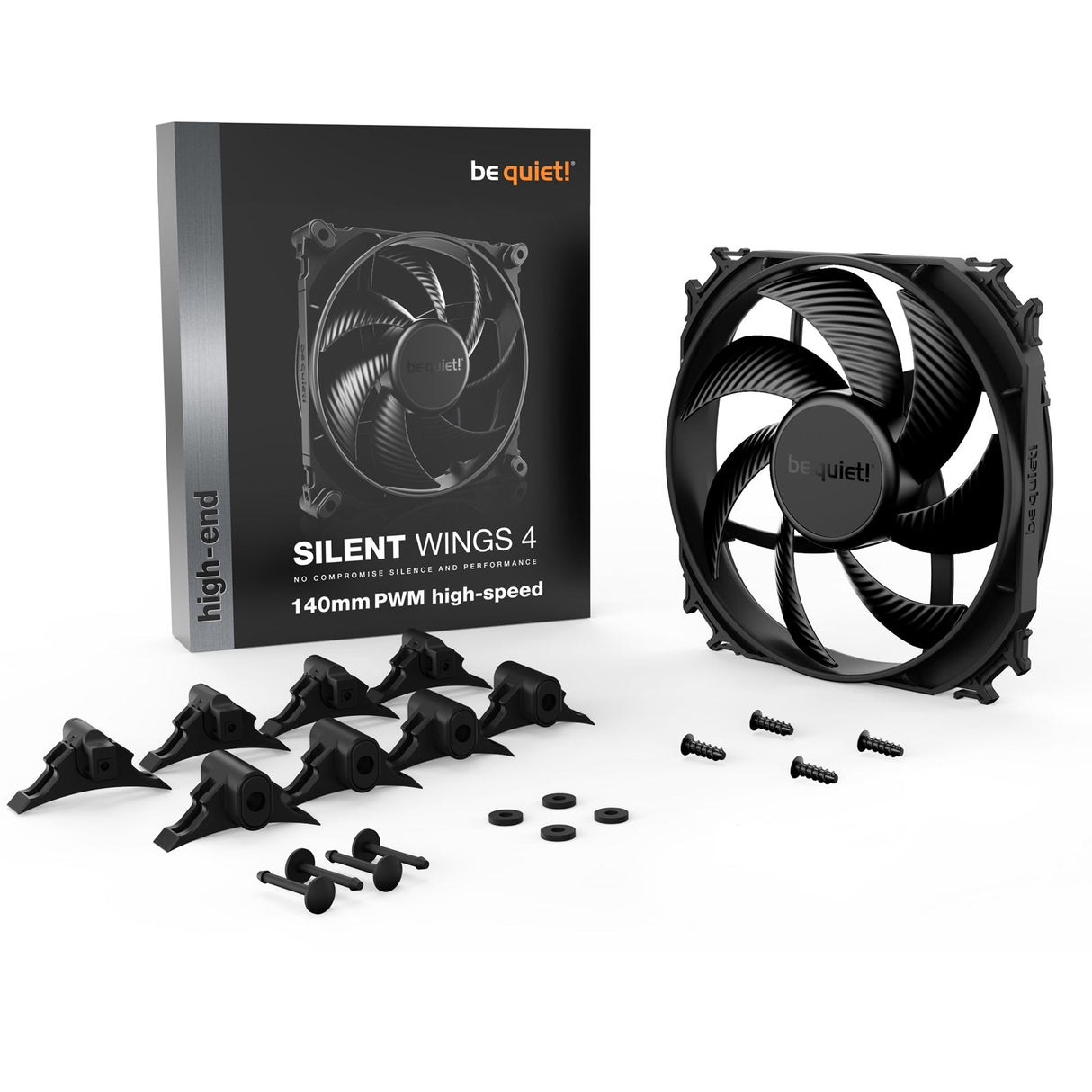

Accessories
| Item |
Included |
| 3-pin to 4-pin 12V-connector |
- |
| 12V to 7V adapter |
- |
| 12V to 5V adapter |
- |
| Screws |
4 |
| Push pins |
4 |
| Hard plastic washer |
- |
| Others |
Rubber & hard plastic mountings |
Safety Certification
| Parameter |
Value |
| Approvals |
CE / RoHs / RU / UKCA / TUV / WEEE |
Environmental Directives
| Parameter |
Value |
| RoHs |
- |
| Triman |
- |
Logistics Data
| Parameter |
Value |
| Article number |
BL097 |
| Package dimensions (L x W x H), (mm) |
206.5 x 156 x 31 |
| Gross weight, package (kg) |
0.39 |
