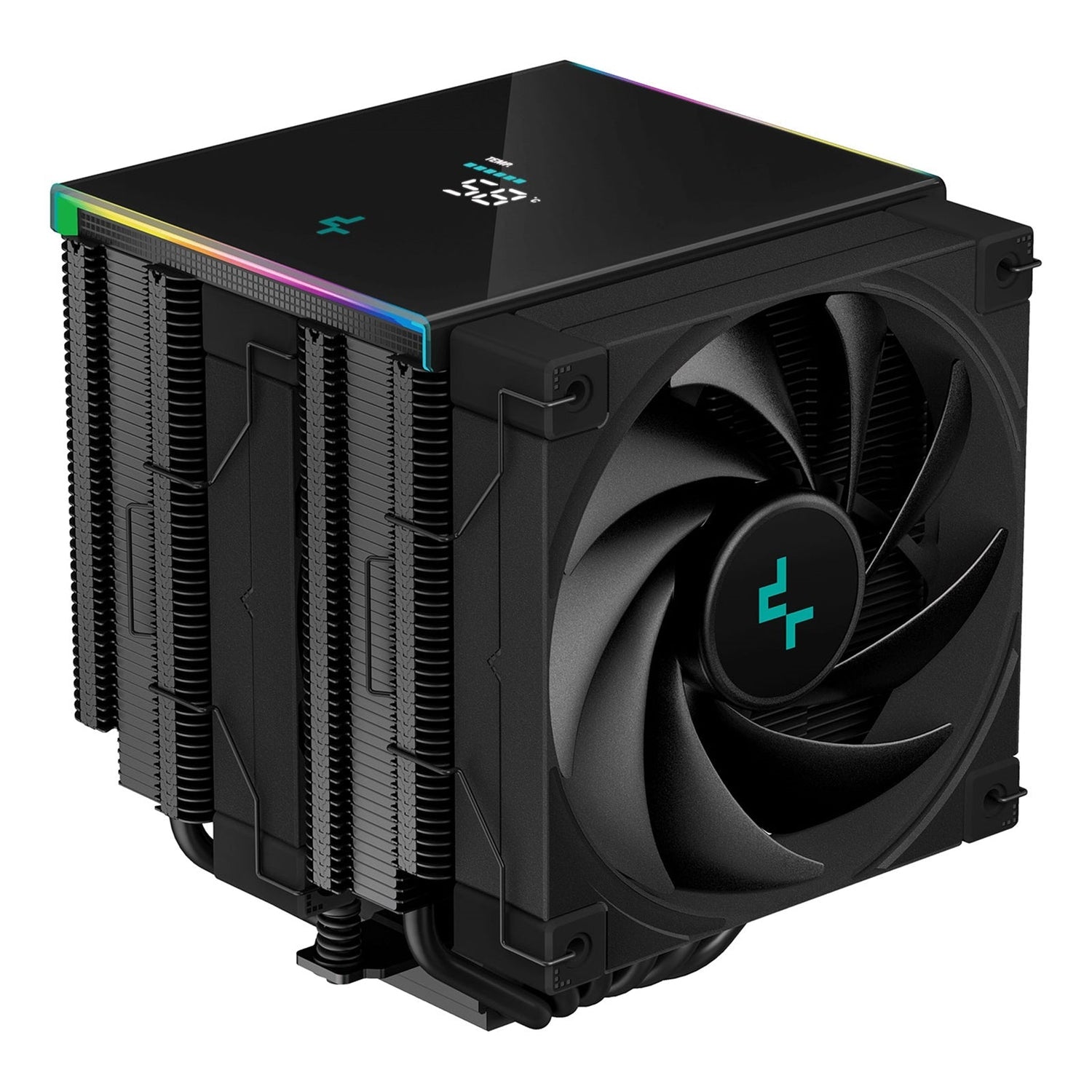

DeepCool AK620 DIGITAL CPU Cooler
Enter the era of digital air cooling with the DeepCool AK620 DIGITAL. Building on everything that made the AK620 ZERO DARK a standout performer, this edition adds a sleek low-profile magnetic status display and vibrant ARGB LED strips for both style and real-time system insight.
Digital Real-Time Status Display
Stay informed at a glance with the integrated crystal-clear digital screen:
- Displays real-time CPU temperature
- Shows real-time CPU usage
- Includes a high-temperature warning
- Controlled via a simple application using an open USB 2.0 header
Proven AK ZERO DARK Design
The AK620 DIGITAL retains the renowned all-black ZERO DARK design and premium construction:
- All-black, dual-tower high-performance CPU cooler
- Six advanced copper heat pipes
- Pure copper coldplate
- Dense dual-tower heatsink
- Two silent FDB (Fluid Dynamic Bearing) fans
This proven design delivers a powerful formula for high-performance cooling with a ZERO DARK raven aesthetic.
Unlocked Performance Potential
Designed to help you achieve peak performance on your CPU:
- Substantial cooling capacity suitable for high-frequency overclocking
- Maximum heat dissipation power
- Improved airflow to help lower temperatures during demanding applications
Cool, Quiet, and Powerful
Enjoy efficient cooling without excessive noise:
- Two powerful PWM fans
- Superior fluid dynamic bearings for smooth operation
- Low noise levels without sacrificing cooling output
This balance ensures cooling performance that remains cool, quiet, and powerful.
Simple and Secure Installation
Installation is straightforward and reliable:
- All-metal mounting bracket included
- Ensures proper contact and even pressure
- Compatible with both Intel and AMD platforms
Specifications
| Category |
Details |
| Product Dimensions |
129 x 138 x 162 mm (L x W x H) |
| Heatsink Dimensions |
127 x 110 x 157 mm (L x W x H) |
| Net Weight |
1486 g |
| Heatpipes |
6 mm x 6 pcs |
Fan
| Category |
Details |
| Fan Dimensions |
120 x 120 x 25 mm (L x W x H) |
| Fan Speed |
500 – 1850 RPM ±10% |
| Fan Airflow |
68.99 CFM |
| Fan Air Pressure |
2.19 mmAq |
| Fan Noise |
< 28 dB(A) |
| Fan Connector |
4-pin PWM |
| Bearing Type |
Fluid Dynamic Bearing |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.12 A |
| Fan Power Consumption |
1.44 W |
Socket Compatibility
| Platform |
Sockets |
| Intel |
LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155 |
| AMD |
AM5 / AM4 |
Lighting & Display
| Category |
Details |
| LED Type |
Addressable RGB LED |
| LED Connector |
3-pin (+5V-D-G) and 9-pin USB 2.0 |
| LED Rated Voltage |
5 VDC |
| LED Power Consumption |
4.75 W |
The DeepCool AK620 DIGITAL combines high-performance cooling, real-time system monitoring, and ARGB aesthetics in a refined, all-black ZERO DARK design.
