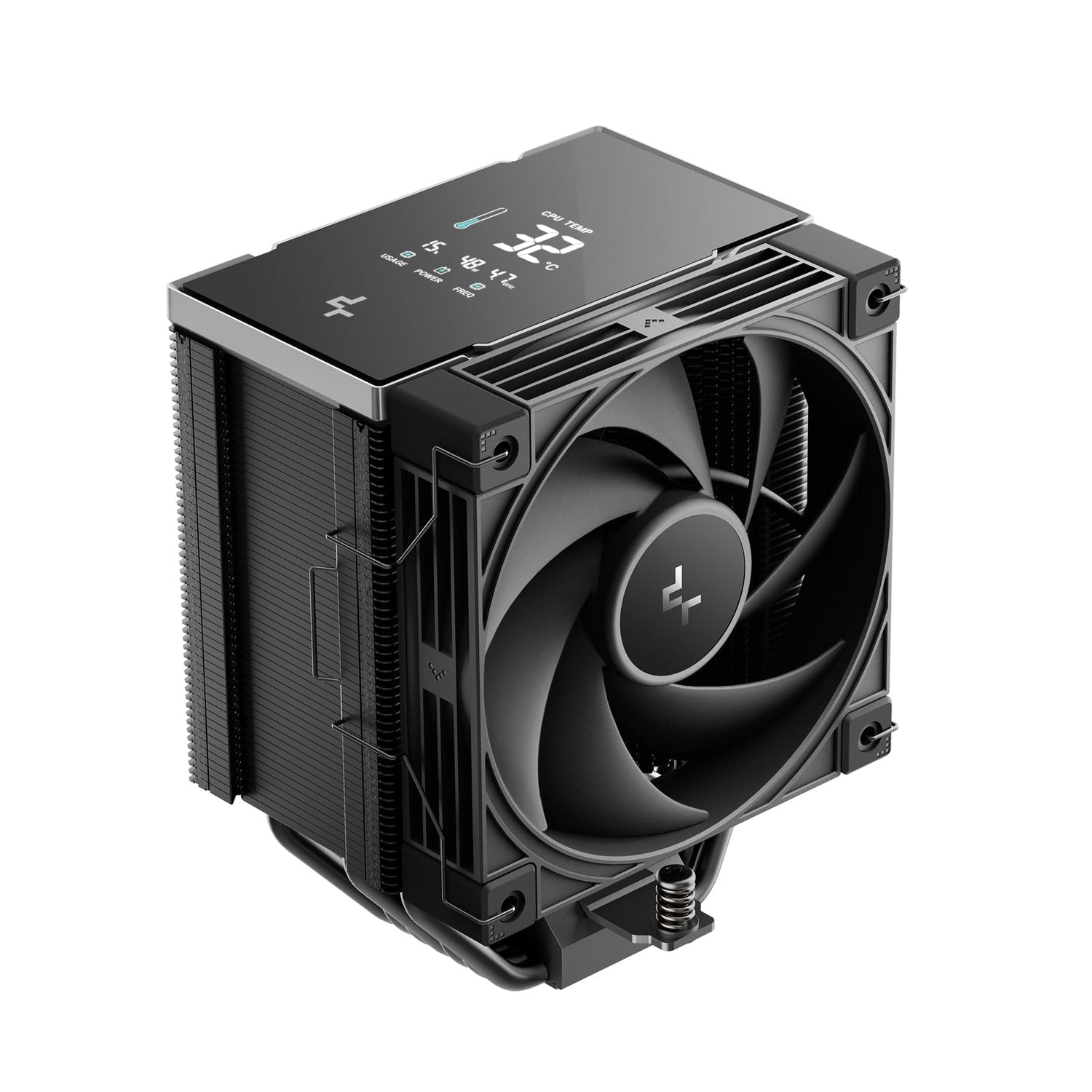

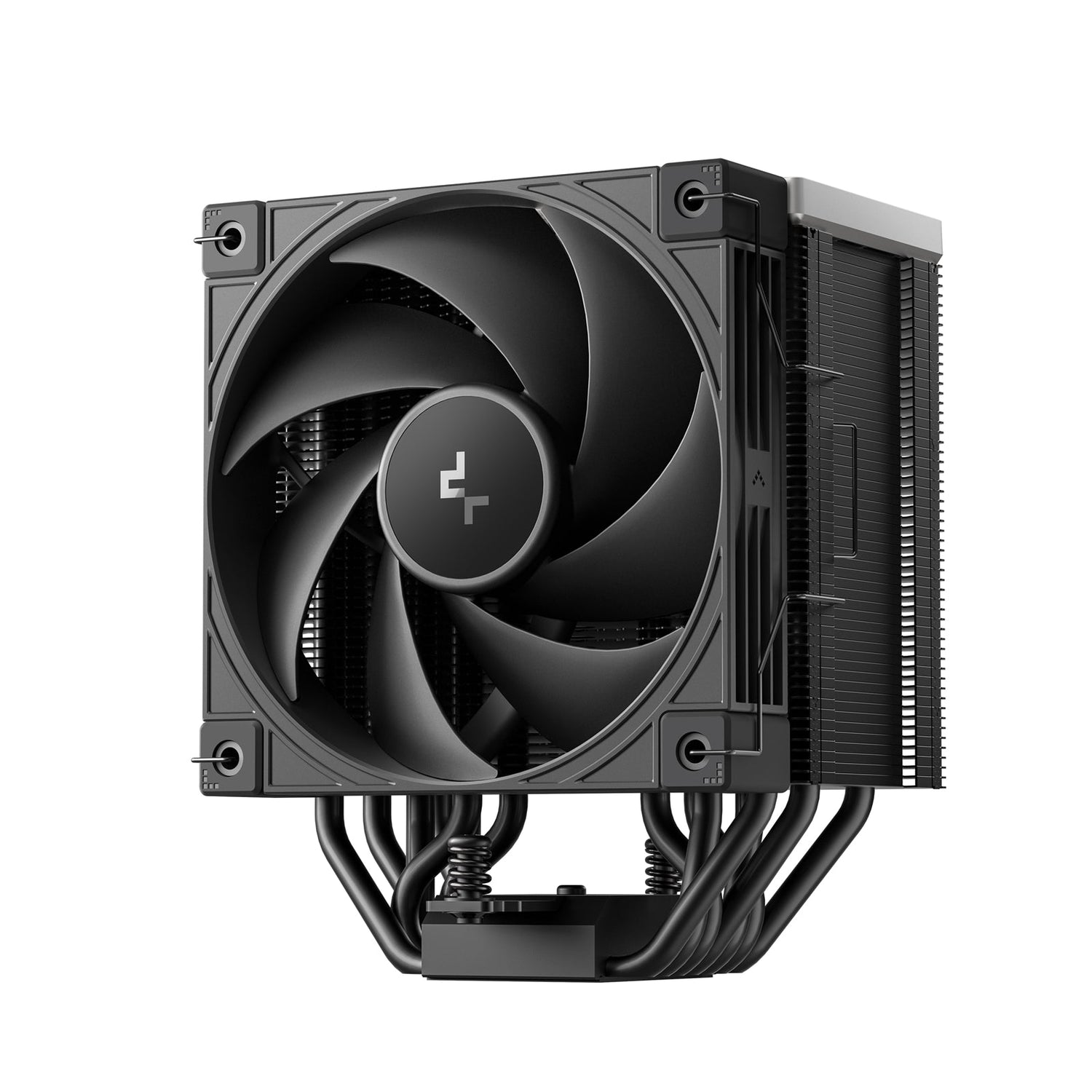

DeepCool AK700 DIGITAL NYX CPU Cooler
Building on the legendary AK DIGITAL lineup, the DeepCool AK700 DIGITAL NYX CPU cooler delivers enhanced cooling performance with a bold, modern design. Featuring seven advanced copper heat pipes, a dense single-tower heatsink, a newly designed silent fan, and a high-end quad-segmented digital display, it offers powerful performance with intuitive real-time monitoring.
Next-Generation Performance
The AK700 DIGITAL NYX is engineered for high-efficiency cooling:
- Utilizes DeepCool’s latest Core Touch Technology (CTT 2.0)
- Optimized single-tower design for improved heat dissipation
- Seven copper heat pipes and a precision-machined copper base for enhanced heat transfer

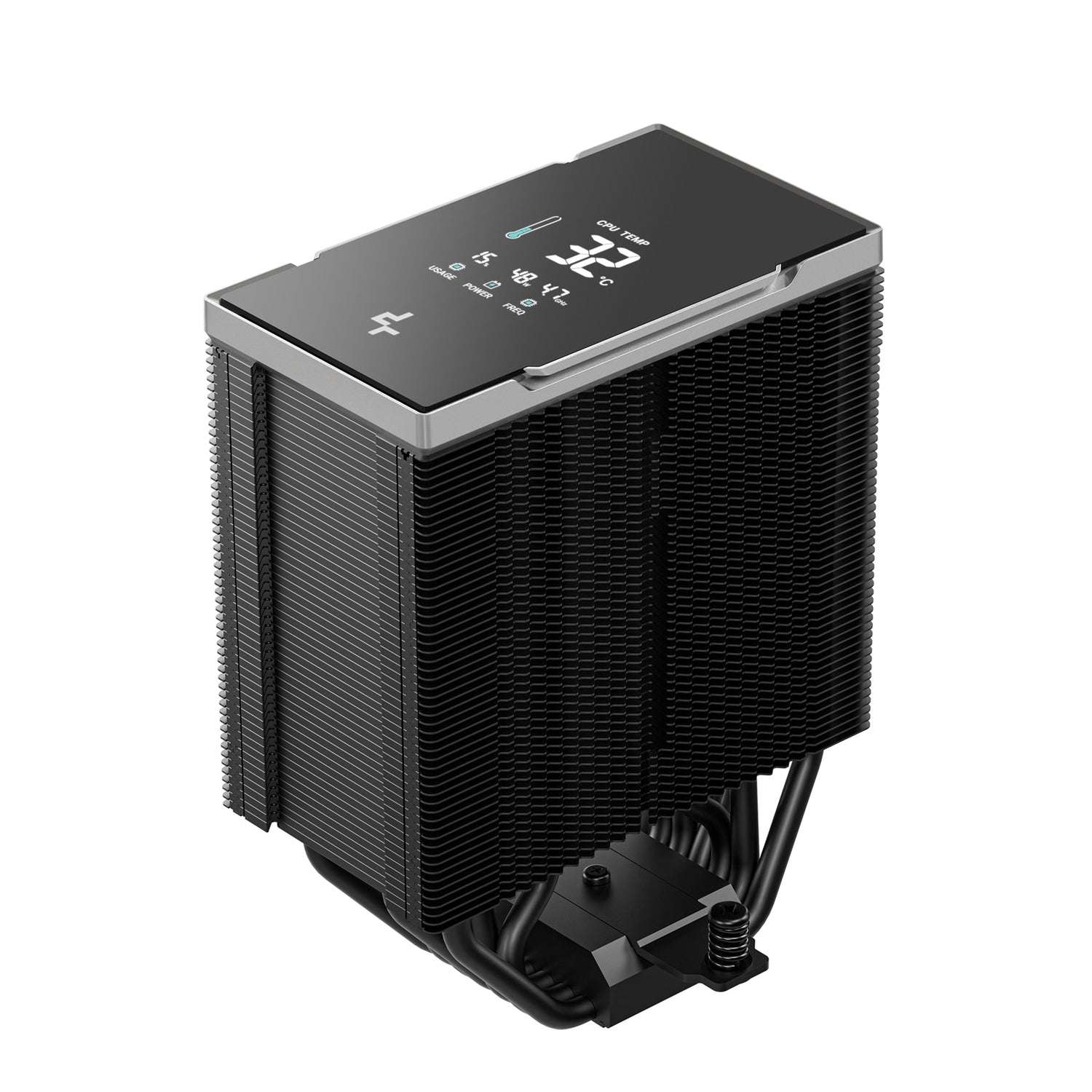

Enhanced Quad-Segmented Digital Display
Stay informed at a glance with the standout quad-segmented digital display:
- Monitors CPU temperature, usage, wattage, and frequency
- Controlled via DeepCool software
- Requires only an open USB 2.0 header for connectivity
- Display area: 29×39 mm
AI-Tuned Cooling with DeepCreative
Achieve optimal cooling without manual tuning:
- Upgraded DeepCreative interface replaces complex BIOS adjustments with one click
-
AI-driven algorithm tracks CPU load in real time
- Automatically matches the optimal fan speed curve
- Balances powerful cooling with whisper-quiet operation
Proven AK Series Design
The AK700 DIGITAL NYX continues the trusted AK design heritage:
-

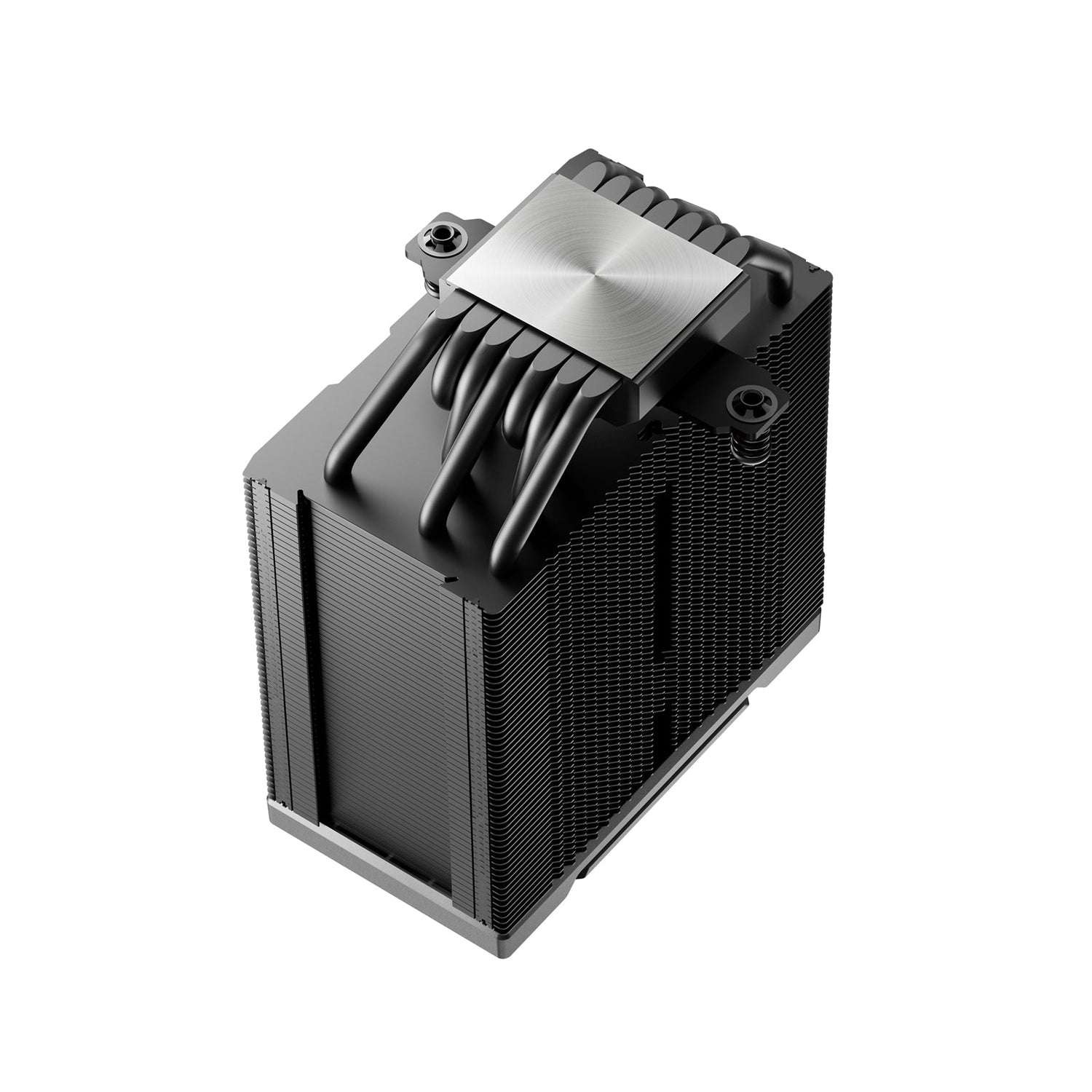

Precision-machined copper base
-
Seven 6 mm copper heat pipes for improved heat transfer
-
Signature matrix fin array in a single-tower heatsink layout
- Engineered for efficiency in high-performance systems
Premium Compatibility
Thoughtfully designed for modern builds:
-

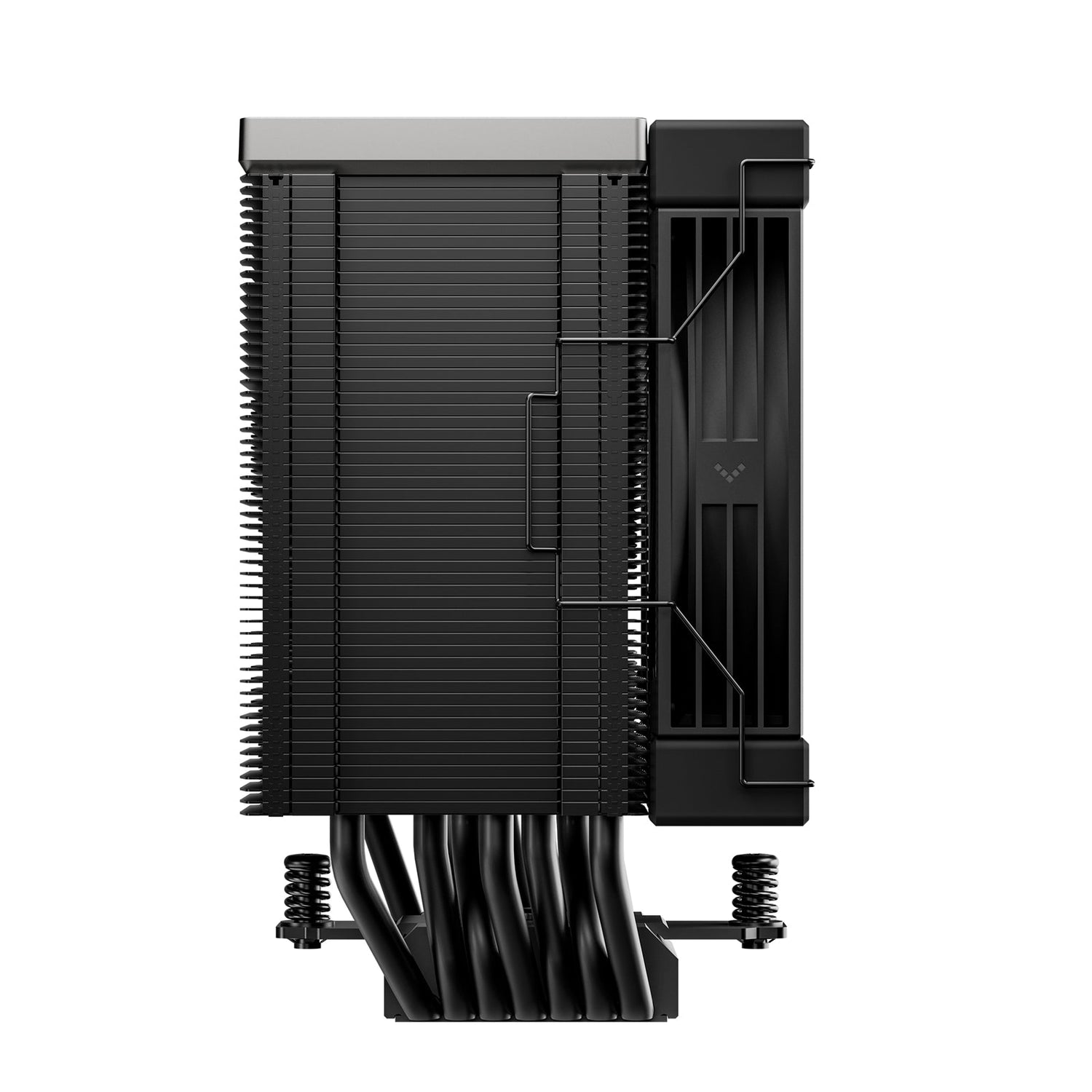

Offset heat pipes support a deeper heatsink while improving component clearance
- Provides additional space for tall heat spreaders
- Maintains an unobstructed view of all RAM slots
Cool, Quiet, and Powerful

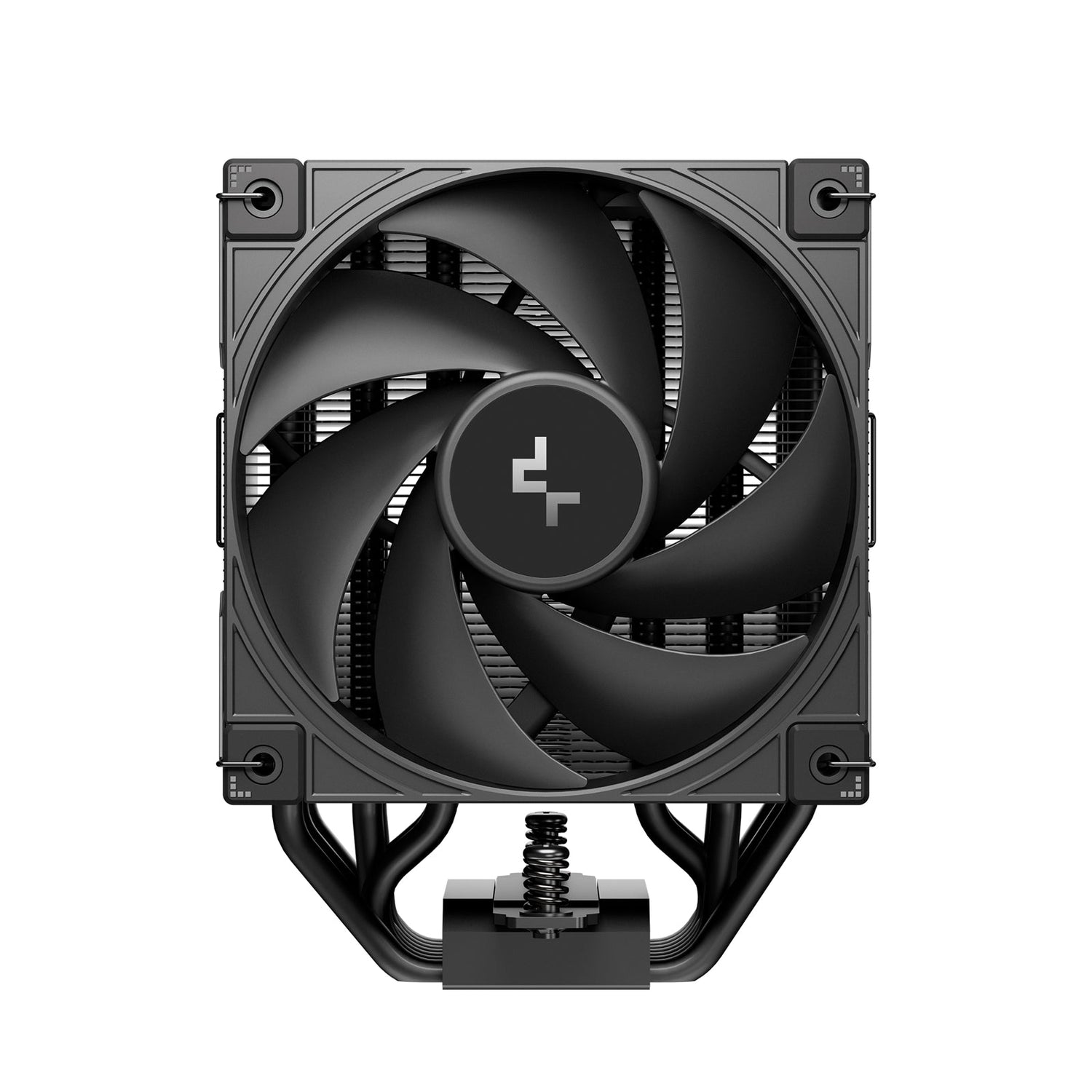

The AK700 DIGITAL NYX fan is designed for smooth, silent operation:
-
High-quality hydraulic (hydro) bearing
-
Three-phase, six-slot, four-pole motor for stable performance
- Optimized for reduced noise across multiple load levels
Multi-Platform Performance
Built for versatility and durability:
-
Durable mounting hardware
- Simple installation process
- Ensures proper contact and equal mounting pressure on mainstream Intel and AMD platforms
Specifications
| Category |
Specification |
| Product Dimensions (L×W×H) |
126 × 98 × 157 mm |
| Heatsink Dimensions (L×W×H) |
124 × 76 × 151 mm |
| Net Weight |
1252 g |
| Heatpipe |
6 mm × 7 pcs |
Fan
| Category |
Specification |
| Fan Dimensions (L×W×H) |
120 × 120 × 25 mm |
| Fan Speed (max) |
2700 ±10% RPM |
| Fan Airflow |
77.23 CFM |
| Fan Air Pressure |
5.13 mmAq |
| Fan Noise |
21.0 / 28.8 / 36.0 dB(A) |
| Fan Connector |
4-pin PWM |
| Bearing Type |
Hydro Bearing |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.35 A |
| Fan Power Consumption |
4.2 W |
Display Module
| Category |
Specification |
| Rated Voltage |
5 VDC |
| Rated Current |
0.13 A ±10% |
| Power Consumption |
0.65 W |
| Display Area |
29 × 39 mm |
