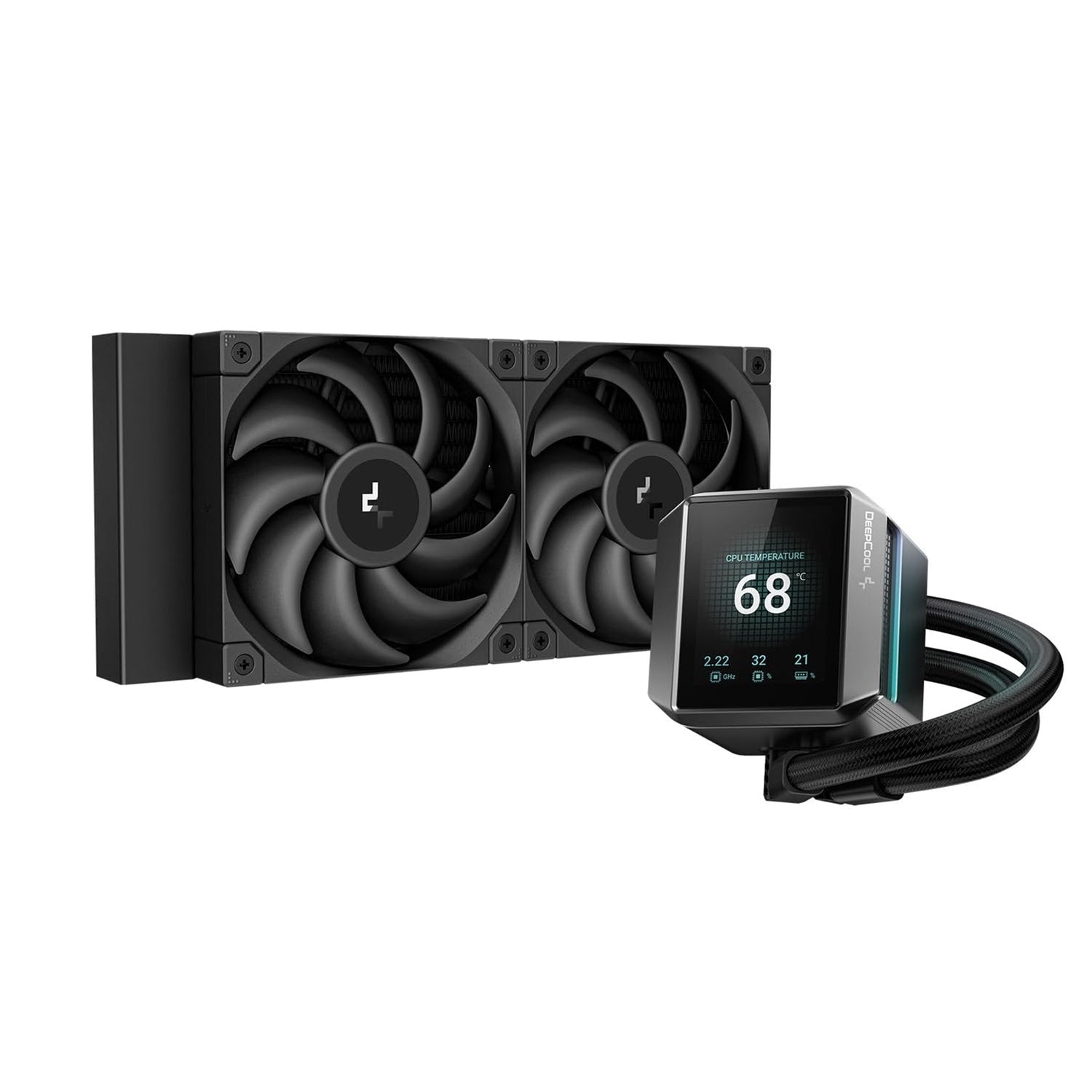

DeepCool MYSTIQUE 240 Liquid CPU Cooler
The MYSTIQUE 240 is part of DeepCool's MYSTIQUE series of liquid coolers, featuring a customizable LCD display and an optimized cooling design for modern CPUs.
Key Features

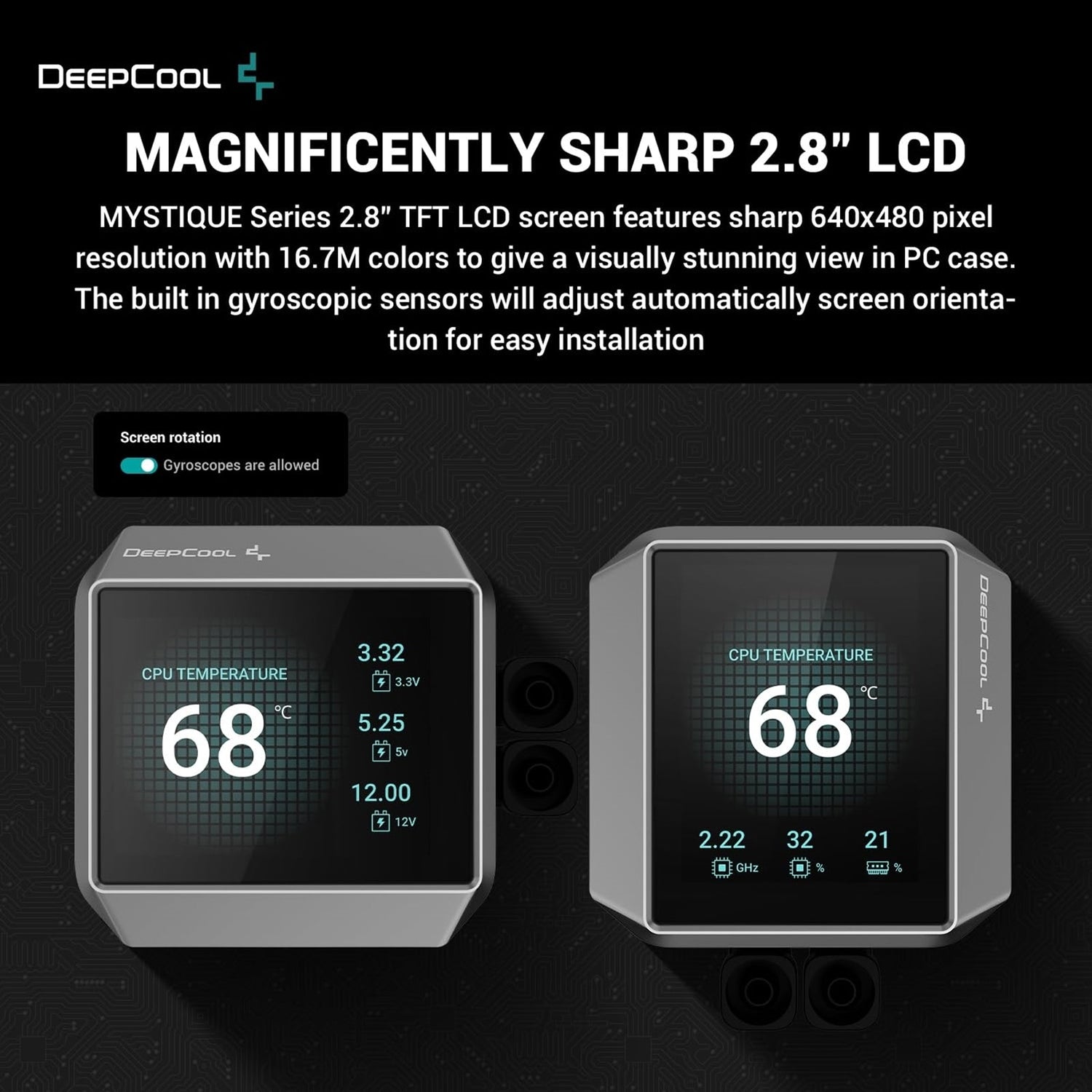

Brilliant 2.8" TFT LCD Display
Visualize your imagination with a magnificently sharp 2.8" TFT LCD screen.
- Resolution: 640 × 480 pixels
- Displays 16.7M colors
- Built-in gyroscopic sensors automatically adjust the screen orientation
- Customize with your own images and animated GIFs

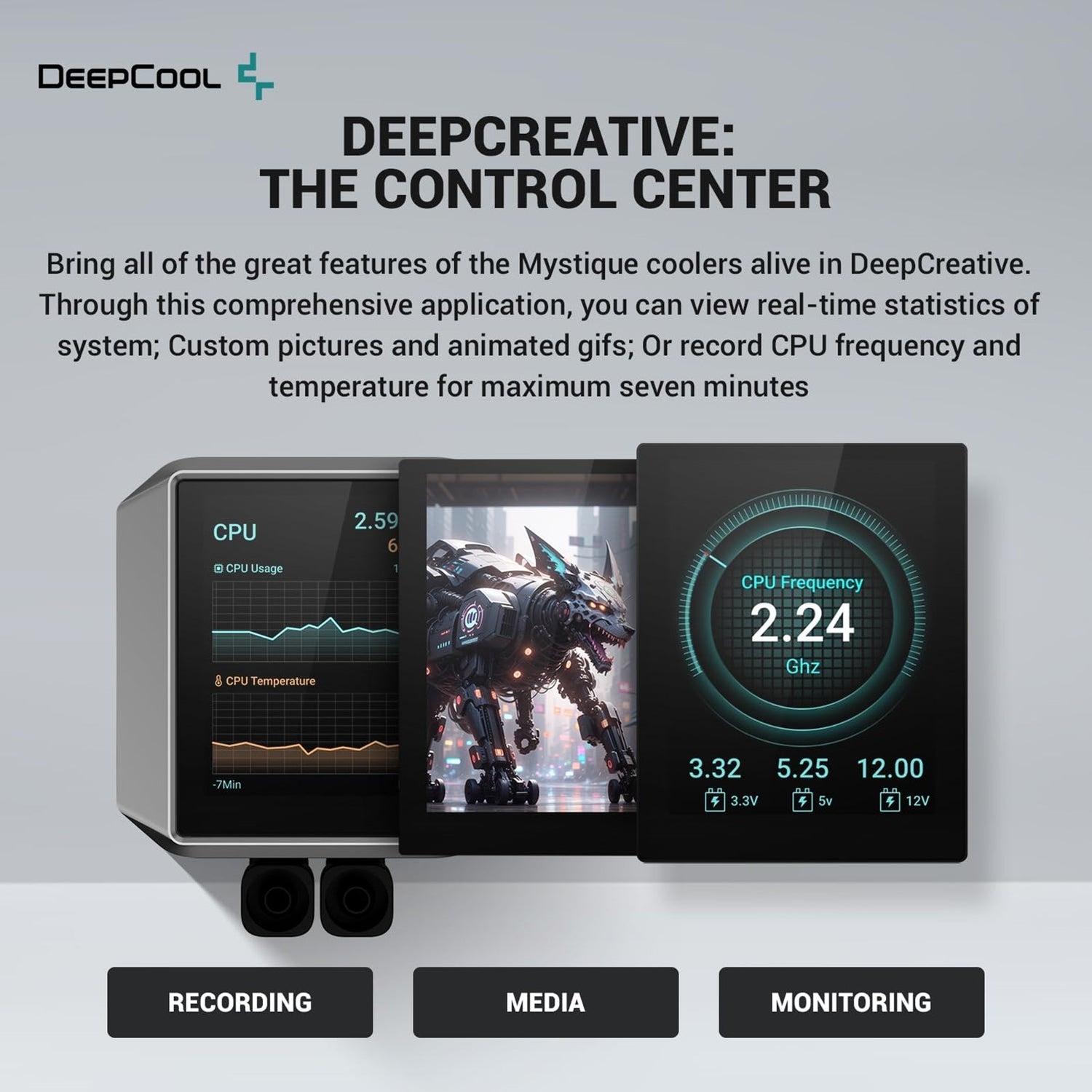

DeepCreative Control Software
DeepCreative is the central control hub for MYSTIQUE coolers.
- View real-time system statistics and system details
- Access and control compatible devices
- Sync RGB accents with your motherboard’s ARGB controller
- Enable a thermal color warning system
- Rolling updates planned for expanding features

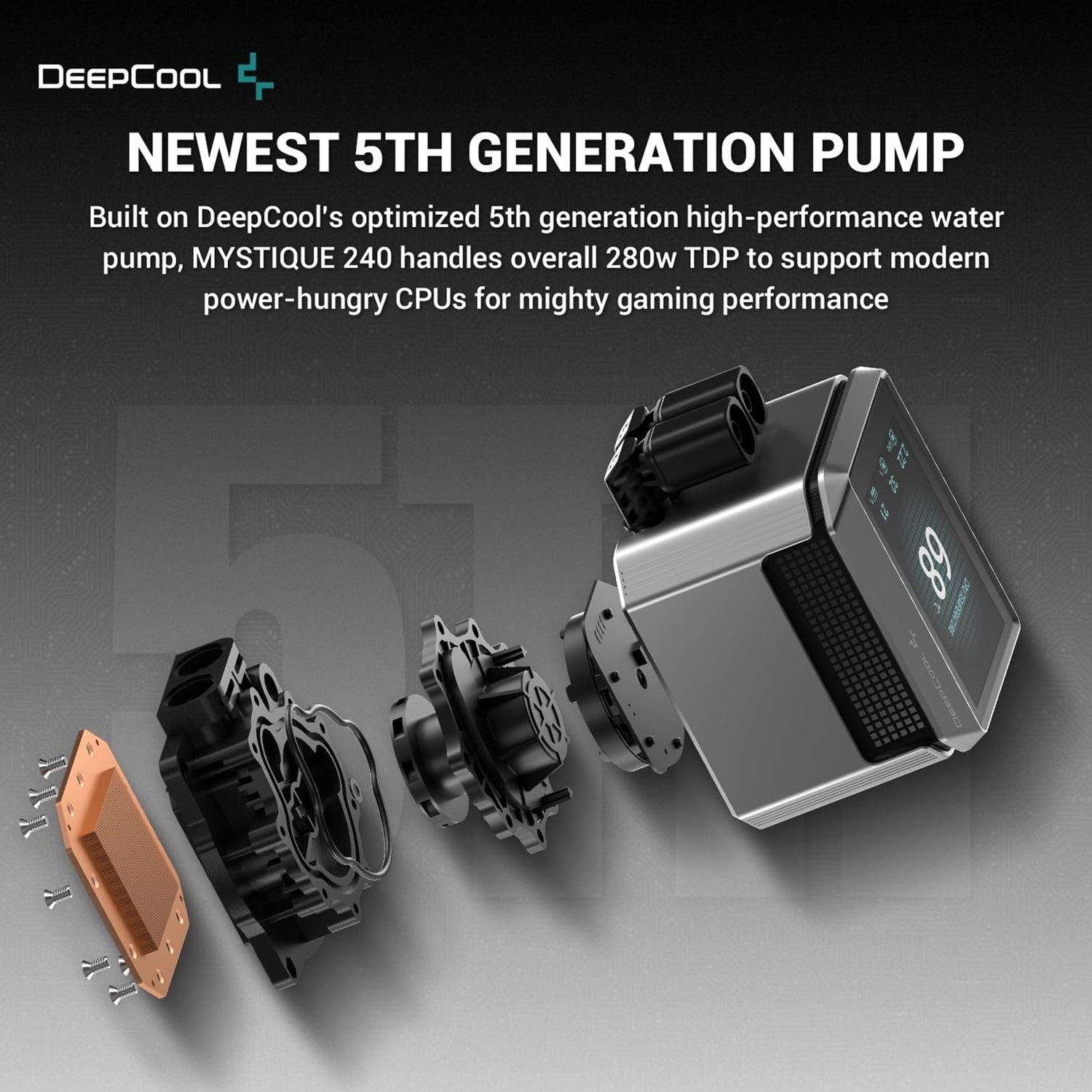

5th Generation High-Performance Pump
Built on DeepCool’s optimized 5th generation water pump for improved cooling.
- Efficient 3-phase, 6-slot, 4-pole motor
- Speeds up to 3400 RPM
- Pump noise kept under 21 dB(A)
Redesigned Coldplate
The MYSTIQUE 240 coldplate is optimized for enhanced heat transfer.
- 0.1 mm intensive flow channels
- Layout positioned over CPU hotspots
- Precise liquid splitter for efficient flow
New High Performance FT12 SE Fans
Includes three black FT12 SE PWM fans.
- Durable PBT fan blades
- High pressure and airflow performance
- Fluid Dynamic Bearing (FDB) for reliability
- 3-phase, 6-slot, 4-pole fan motor design for smoother operation
Anti-Leak Technology
DeepCool’s patented Anti-Leak Technology improves reliability.
- Internal valve regulates and purges excess pressure
- Helps extend useful life and reduce the possibility of leaks

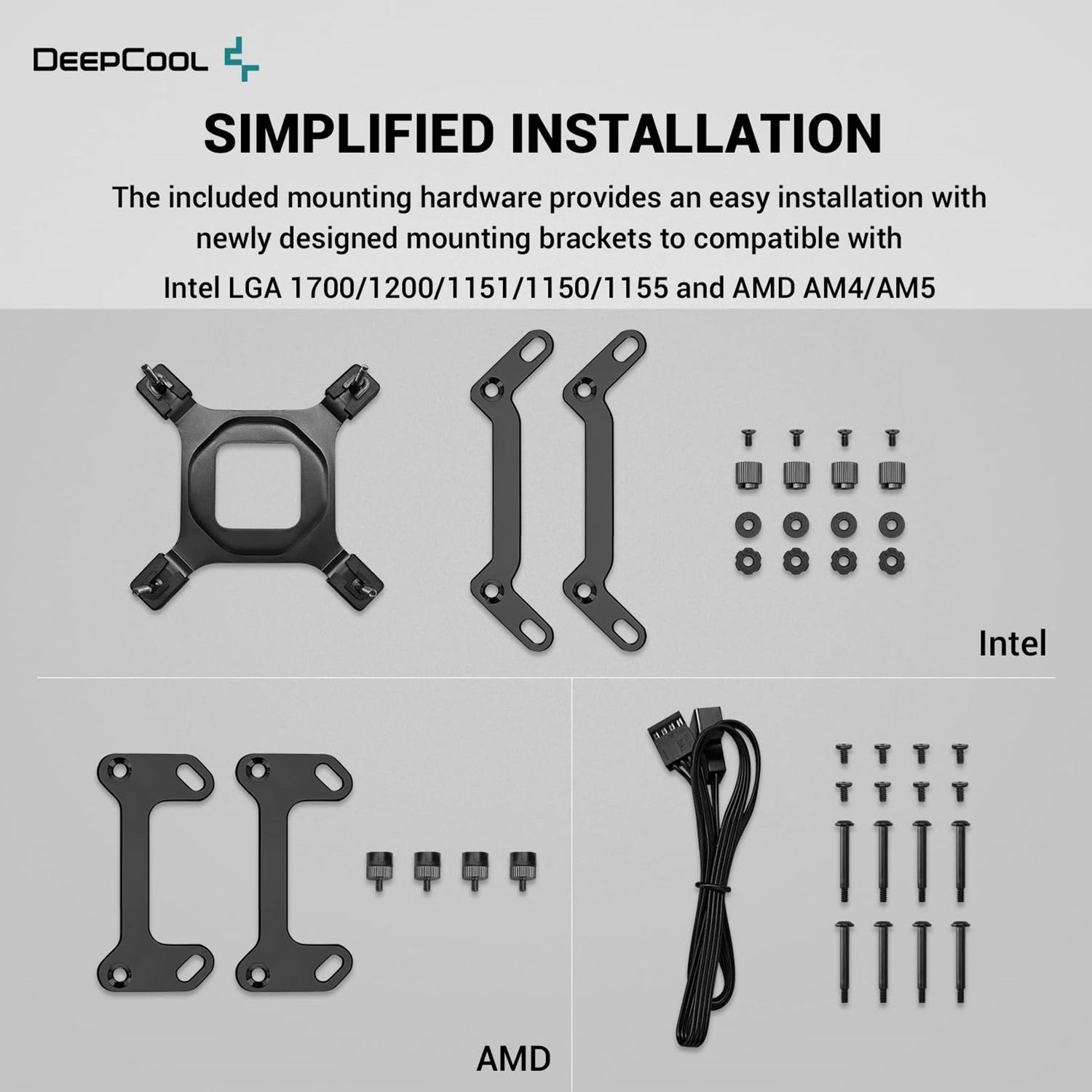

Simplified Installation
Designed for a straightforward mounting process.
- Ensures proper contact and equal pressure
- Compatible with both Intel and AMD platforms
- Includes all necessary mounting hardware for the latest mainstream CPUs
Specifications
Socket Compatibility
| Platform |
Sockets |
| Intel |
LGA1700 / 1200 / 1151 / 1150 / 1155 / 1851 |
| AMD |
AM5 / AM4 |
Radiator
| Specification |
Details |
| Radiator Dimensions |
282 × 120 × 27 mm (L × W × H) |
| Radiator Material |
Aluminum |
| Tube Length |
410 mm |
Pump
| Specification |
Details |
| Pump Dimensions |
93 × 77 × 66 mm (L × W × H) |
| Pump Speed |
3400 RPM ±10% |
| Pump Noise |
21 dB(A) |
| Pump Connector |
3-pin |
| Pump Rated Voltage |
12 VDC |
| Pump Rated Current |
0.35 A |
| Pump Power Consumption |
4.2 W |
Fans (FT12 SE)
| Specification |
Details |
| Fan Dimensions |
120 × 120 × 25 mm (L × W × H) |
| Fan Speed |
500 ~ 2150 RPM ±10% |
| Fan Airflow |
72.45 CFM |
| Fan Noise |
≤ 36.49 dB(A) |
| Fan Connector |
4-pin PWM |
| Bearing Type |
Fluid Dynamic Bearing |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.3 A |
| Fan Power Consumption |
3.6 W |
Lighting
| Specification |
Details |
| LED Type |
Addressable RGB LED |
| LED Connector |
3-pin (+5V-D-G) |
| LED Rated Voltage |
5 VDC |
| LED Power Consumption |
2.45 W (Pump) |
Display
| Specification |
Details |
| Display Type |
TFT LCD |
| Display Size |
2.83 inch |
| Display Resolution |
480 × 640 |
