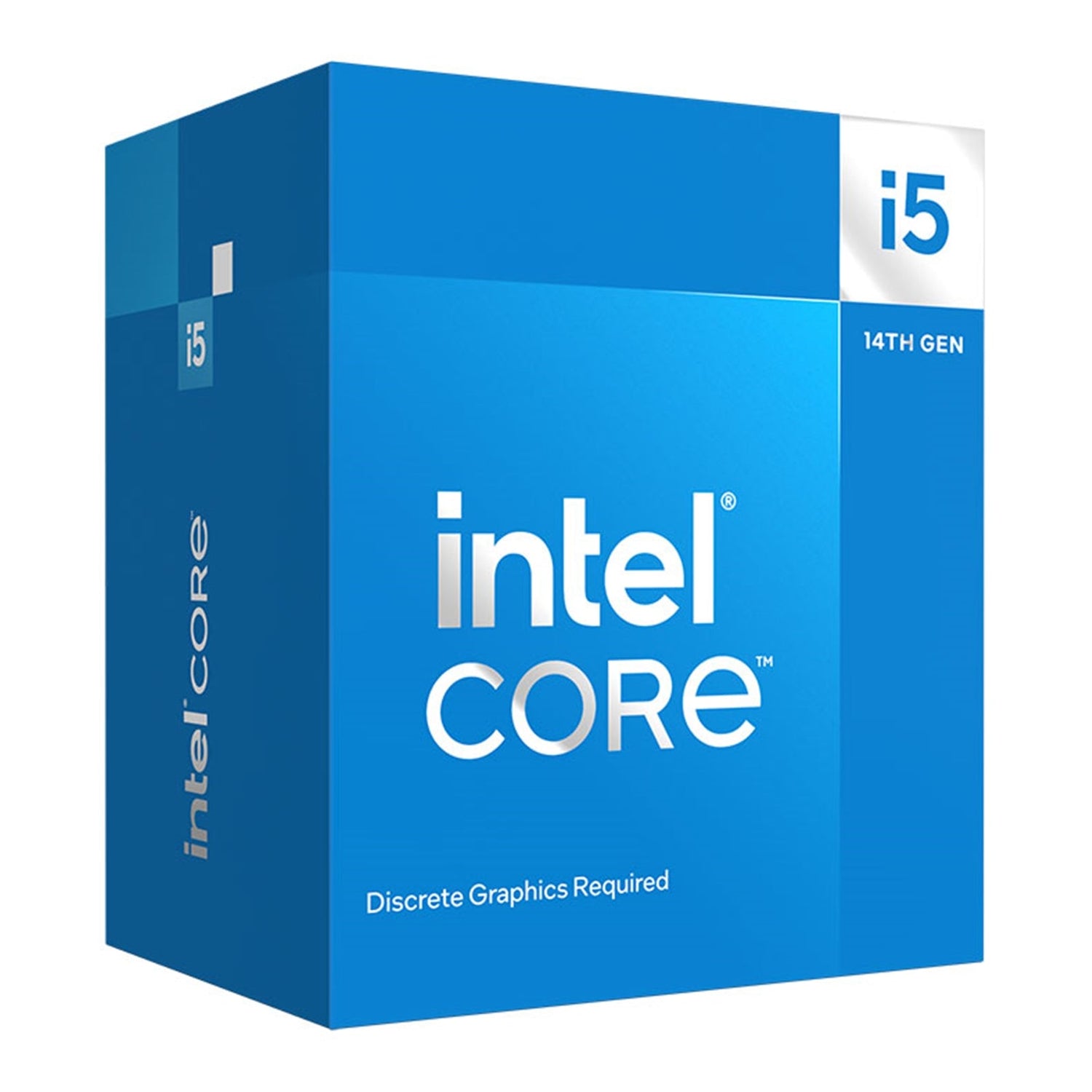

Intel® Core™ i5-14400F Processor (14th Gen) – Game Without Compromise
Go beyond performance with the Intel® Core™ i5-14400F, part of the 14th Generation Intel Core processor family based on Raptor Lake architecture. Featuring a hybrid design that combines high-performance P-cores with power-efficient E-cores, this desktop CPU is built to handle modern gaming and multitasking workloads.
With up to 10 cores (6 Performance-cores and 4 Efficient-cores) and up to 16 threads, the i5-14400F delivers responsive gaming, smooth creation, and powerful everyday computing. It supports PCIe 5.0, DDR4 and DDR5 memory, and new Wi-Fi 7 connectivity, empowering you to be your best with Intel.
Revolutionary Performance and Multitasking
The newly optimised hybrid architecture and advanced technologies of the 14th Gen Intel Core i5-14400F enable you to push beyond gaming and content creation.
-
6 Performance-cores (P-cores)
Designed to unleash the capability to optimise the latest games and gaming software.
-
4 Efficient-cores (E-cores)
Provide the multi-tasking power to work, create, and play at the same time.
Key CPU Specifications
| Specification |
Detail |
| Product Collection |
Intel® Core™ i5 Processors (14th Gen) |
| Code Name |
Products formerly Raptor Lake |
| Vertical Segment |
Desktop |
| Processor Number |
i5-14400F |
| Lithography |
Intel 7 |
| Use Conditions |
PC/Client/Tablet |
| Total Cores |
10 |
| Performance-cores |
6 |
| Efficient-cores |
4 |
| Total Threads |
16 |
| Max Turbo Frequency |
4.7 GHz |
| Performance-core Max Turbo Frequency |
4.7 GHz |
| Efficient-core Max Turbo Frequency |
3.5 GHz |
| Performance-core Base Frequency |
2.5 GHz |
| Efficient-core Base Frequency |
1.8 GHz |
| Cache |
20 MB Intel® Smart Cache |
| Total L2 Cache |
9.5 MB |
| Processor Base Power |
65 W |
| Maximum Turbo Power |
148 W |
Memory Specifications
| Specification |
Detail |
| Max Memory Size* |
192 GB |
| Memory Types |
Up to DDR5 4800 MT/s / Up to DDR4 3200 MT/s |
| Max # of Memory Channels |
2 |
| Max Memory Bandwidth |
76.8 GB/s |
*Dependent on memory type.
Expansion Options
| Specification |
Detail |
| Direct Media Interface (DMI) Revision |
4.0 |
| Max # of DMI Lanes |
8 |
| Scalability |
1S Only |
| PCI Express Revision |
5.0 and 4.0 |
| PCI Express Configurations |
Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes |
20 |
Package Specifications
| Specification |
Detail |
| Sockets Supported |
FCLGA1700 |
| Max CPU Configuration |
1 |
| Thermal Solution Specification |
PCG 2020C |
| TJUNCTION |
100°C |
| Package Size |
45.0 mm x 37.5 mm |
Advanced Technologies
| Technology |
Supported |
| Intel® Gaussian & Neural Accelerator 3.0 |
Yes |
| Intel® Thread Director |
Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) |
Yes |
| Intel® Speed Shift Technology |
Yes |
| Intel® Turbo Boost Technology 2.0 |
Yes |
| Intel® Hyper-Threading Technology |
Yes |
| Intel® 64 |
Yes |
| Instruction Set |
64-bit |
| Instruction Set Extensions |
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States |
Yes |
| Enhanced Intel SpeedStep® Technology |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Intel® Volume Management Device (VMD) |
Yes |
Security & Reliability Features
| Feature |
Supported |
| Intel® Standard Manageability (ISM) |
Yes |
| Intel® Control-Flow Enforcement Technology |
Yes |
| Intel® AES New Instructions |
Yes |
| Intel® Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Execute Disable Bit |
Yes |
| Intel® Boot Guard |
Yes |
| Mode-based Execute Control (MBEC) |
Yes |
| Intel® Virtualization Technology (VT-x) |
Yes |
| Intel® VT for Directed I/O (VT-d) |
Yes |
| Intel® VT-x with Extended Page Tables (EPT) |
Yes |
Supplemental Information
| Specification |
Detail |
| Marketing Status |
Launched |
| Launch Date |
Q1'24 |
| Embedded Options Available |
Yes |
Harness the hybrid power, modern connectivity support, and advanced technologies of the Intel® Core™ i5-14400F to elevate your desktop gaming and productivity experience.
