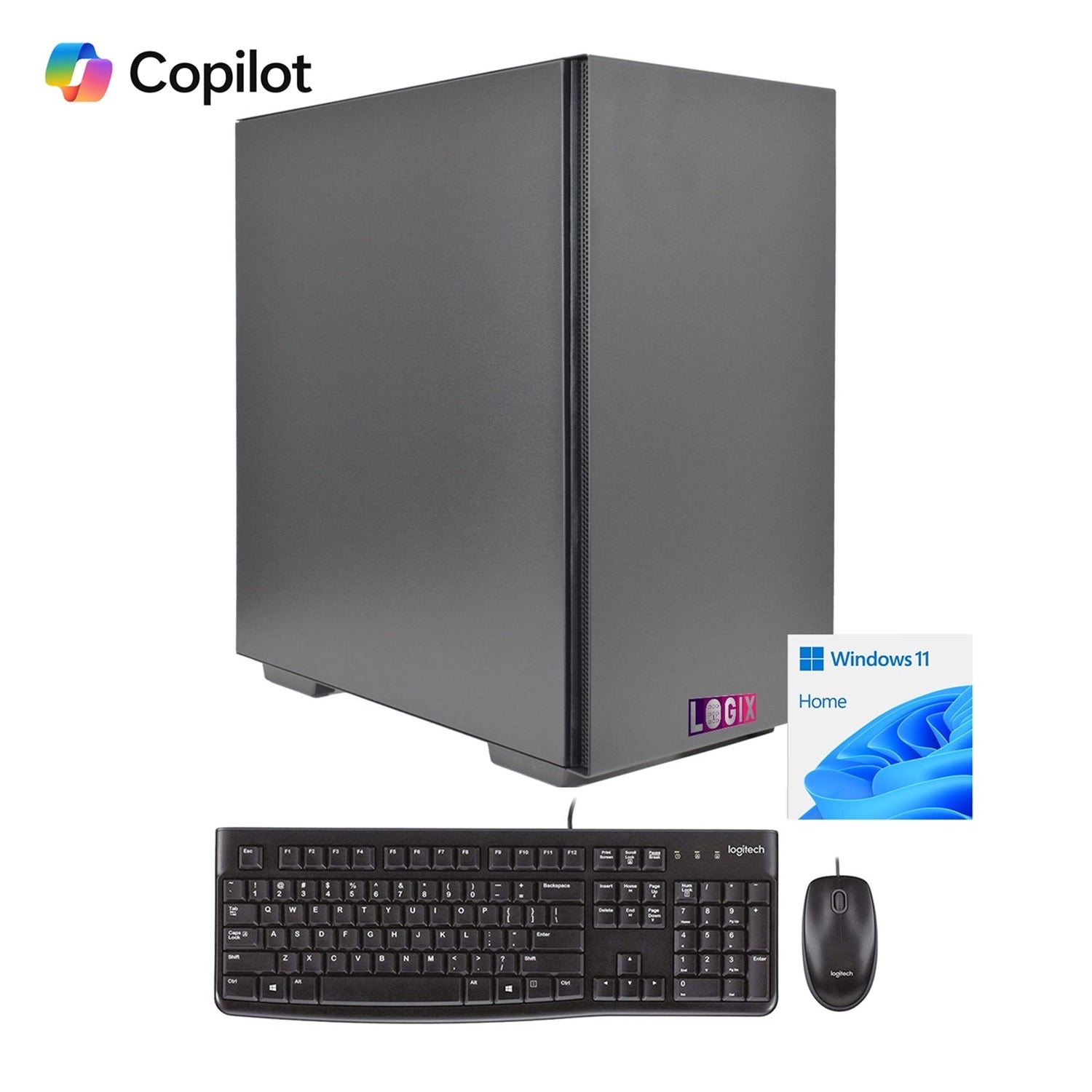

LOGIX Family PC – Powerful, Practical Home Desktop
From homework to entertainment and everything in between, the LOGIX Family PC is your household’s go-to machine. Powerful, practical, and ready to use straight out of the box, it’s built to keep every member of the family connected and productive.
Built for Homework, Streaming & Everyday Life
The LOGIX Family PC is a great-value desktop designed for:
- Homework and online learning
- Streaming your favourite shows
- Browsing the web
- Keeping in touch with friends and family
With fast, quiet, and reliable performance, it keeps up with everyday life with ease.
Ready for Work, Play & Multitasking
Powered by a 14th Gen Intel Core i3 processor and 16GB of Kingston DDR4 memory, this family PC handles multitasking smoothly, from school projects to after-hours work tasks.
The 500GB Kingston PCIe 4.0 NVMe SSD delivers:
- Rapid start-up times
- Quick file access
- Responsive everyday performance
Flexible, Fast & Family-Friendly
The compact DeepCool micro-ATX tower blends into any room, while flexible connectivity options make setup simple:
- Wi-Fi 6 and Gigabit Ethernet for fast, reliable networking
- Multiple USB, audio and display connections
- Included Logitech MK120 keyboard and mouse so it’s ready to go out of the box
Built to Last, Backed by Warranty
Hand-built with trusted components, the LOGIX Family PC is designed to grow with your household. It’s protected by a 3-year parts and collection warranty (UK mainland only) for added peace of mind.
Key Features
-
Processor: 14th Gen Intel Core i3 – 4 cores, 8 threads, up to 4.70GHz
-
Memory: 16GB Kingston DDR4 (upgradeable to 64GB)
-
Storage: 500GB Kingston PCIe 4.0 NVMe M.2 SSD
-
Graphics: Intel UHD Graphics 730
-
Connectivity: Wi-Fi 6 + Gigabit Ethernet
-
Case: DeepCool MACUBE 110 micro tower, cool and quiet
-
Operating System: Windows 11 Home (preinstalled)
-
Accessories: Logitech MK120 wired keyboard (with waterproof silicone cover) & mouse
-
Warranty: 3-year parts and collection (UK mainland only)
Detailed Specifications
Operating System
| Specification |
Details |
| Operating System |
Microsoft Windows 11 Home 64-bit English OEI DVD (installed and up to date) |
Processor
| Specification |
Details |
| Model |
Intel Core i3-14100 (Raptor Lake Refresh) |
| Cores / Threads |
4 cores / 8 threads |
| Base Clock Speed |
3.50GHz |
| Boost Clock Speed |
Up to 4.70GHz Turbo |
| Socket |
LGA 1700 |
| Cache |
12MB |
| Processor Base Power |
60W |
| Maximum Turbo Power |
110W |
| Integrated Graphics |
Intel UHD Graphics 730 |
Memory
| Specification |
Details |
| Capacity |
16GB Kingston DDR4 |
| Type |
DDR4 3200MHz (PC4-25600) |
| Modules |
2 x 8GB DIMM (2 lanes, 2 occupied) |
| Voltage |
1.20V |
| Latency |
CL22 |
| Upgradeable |
Yes, up to 64GB DDR4 (additional memory slot available) |
| Profile Support |
Intel XMP |
Storage
| Specification |
Details |
| Primary Drive |
Kingston NV2 (SNV2S/500G) 500GB NVMe SSD |
| Interface |
PCIe 4.0 x4 NVMe, M.2 2280 |
| Max Read Speed |
Up to 3500MB/s |
| Max Write Speed |
Up to 2100MB/s |
| Endurance |
160 TBW |
| MTBF |
1,500,000 hours |
| Additional Drives |
No additional drive fitted |
| Optical Drive |
No optical drive fitted |
Graphics
| Specification |
Details |
| Integrated GPU |
Intel UHD Graphics 730 |
| Base Frequency |
300 MHz |
| Max Dynamic Frequency |
1.40 GHz |
| Execution Units |
32 |
| Max Resolution (DisplayPort) |
7680 x 4320 @ 60Hz |
| Max Resolution (HDMI) |
4096 x 2160 @ 60Hz |
| Outputs |
DisplayPort 1.4b, DisplayPort 1.4a, HDMI 2.1 |
| Dedicated GPU |
No dedicated graphics card fitted (uses Intel on-chip graphics) |
Motherboard
| Specification |
Details |
| Model |
Gigabyte H610M S2H V3 DDR4 Ultra Durable |
| Form Factor |
Micro-ATX |
| Socket |
Intel LGA 1700 |
| Memory Support |
2 x DDR4 slots |
| Storage Support |
1 x M.2 Socket (PCIe 3.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors |
Expansion Slots
- CPU: 1 x PCI Express x16 slot (PCIe 4.0, x16)
- Chipset: 1 x PCI Express x1 slot (PCIe 3.0, x1)
Rear I/O Ports
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 2 x DisplayPorts
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 Ethernet port
- 3 x audio jacks
Internal I/O
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
Networking & Wireless
| Specification |
Details |
| Wired LAN |
Realtek 1Gbps GbE LAN |
| LAN Features |
Network bandwidth management to improve latency and maintain low ping times in crowded LAN environments |
| Wireless Adapter |
TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter |
Wireless Standards
- 5 GHz: IEEE 802.11ax/ac/n/a
- 2.4 GHz: IEEE 802.11ax/n/g/b
WLAN Signal Rates
Bluetooth
Power Supply
| Specification |
Details |
| Model |
DeepCool PF400 80 PLUS Standard Power Supply |
| Wattage |
400W |
| Efficiency |
85% |
| Fan |
Silent hydraulic bearing fan |
| Cables |
Flat black cables |
| Main Connectors |
24 (20+4) pin x 1, EPS 12V 8 (4+4) pin x 1 |
| PCI-E Connectors |
2 x (6+2) pin |
| SATA Connectors |
3 x SATA |
| Peripheral Connectors |
1 x 4-pin peripheral |
Case & Cooling
| Specification |
Details |
| Model |
DeepCool MACUBE 110 |
| Type |
Micro tower, home & business, black |
| Side Panels |
Solid side panels |
| Front I/O |
2 x USB 3.0, HD mic/audio, power, reset |
| Internal 3.5" Bays |
2 |
| Internal 2.5" Bays |
2 |
Cooling Support
- Front: Up to 3 x 120mm or 2 x 140mm fans
- Top: Up to 2 x 120mm or 2 x 140mm fans
- Rear: 1 x 120mm DC fan (pre-installed)
Dimensions & Weight
- Dimensions: 400mm x 225mm x 431mm
- Package Weight: 6.9 kg
Front & Back Connections (Case & System)
Front
- 2 x USB-A 3.0
- 3.5mm HD microphone & audio
Back
- 2 x PS/2
- 1 x VGA
- 2 x DisplayPort
- 1 x HDMI
- 2 x USB-A 3.2 Gen 1
- 4 x USB-A 2.0
- 1 x RJ-45 Ethernet
- 3 x 3.5mm audio
Peripherals
| Specification |
Details |
| Keyboard |
Logitech MK120 wired keyboard with waterproof silicone cover |
| Mouse |
Logitech MK120 wired mouse |
Warranty
| Specification |
Details |
| Warranty Length |
3 years |
| Coverage |
Parts & collection / labour including collect and return (UK mainland only) |
