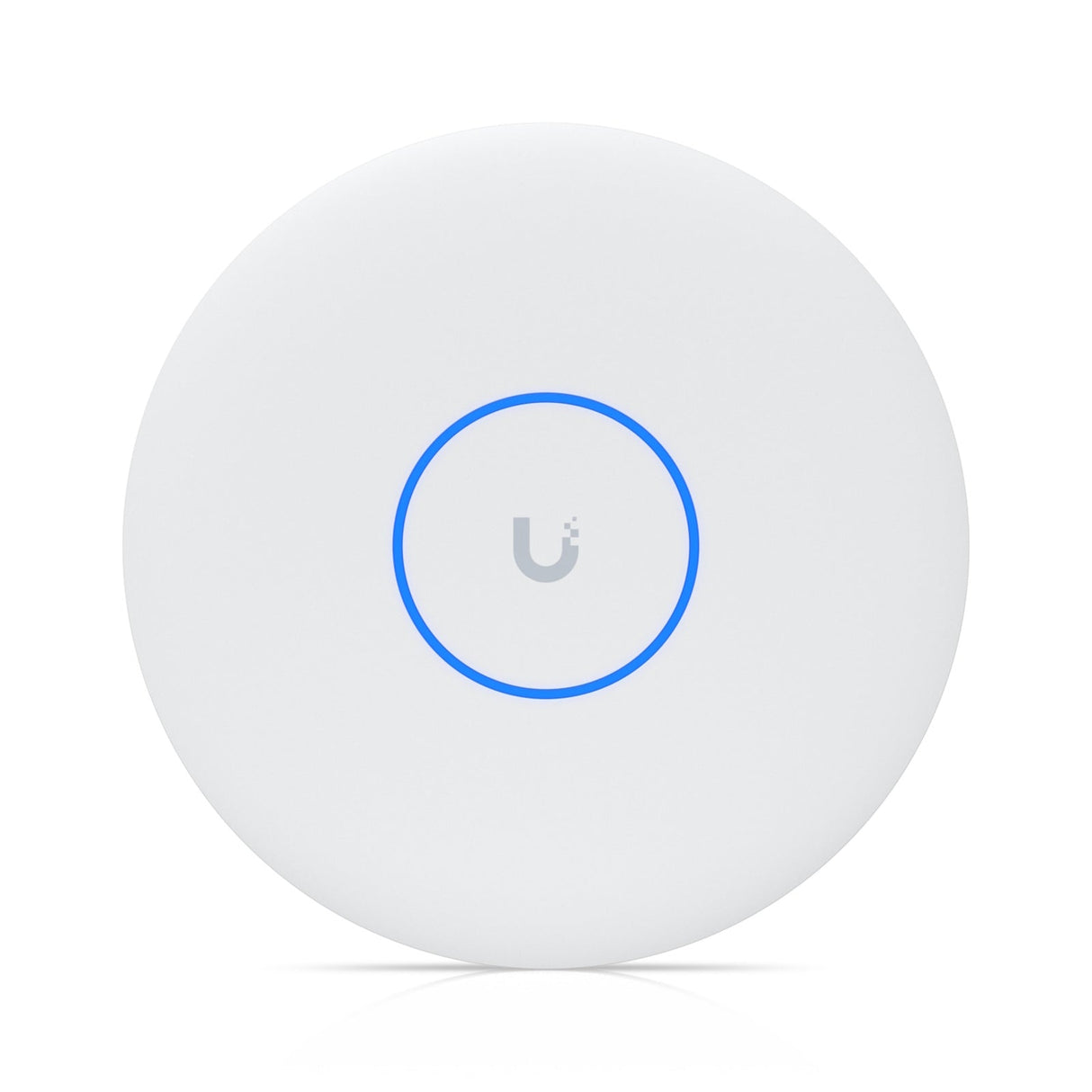

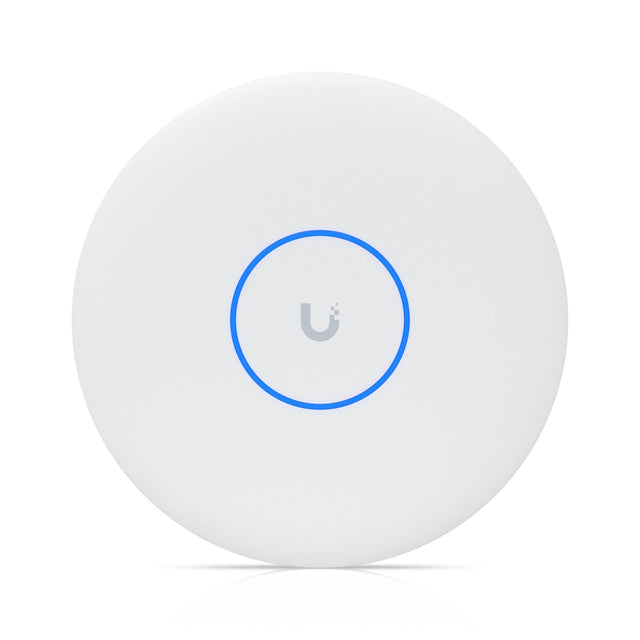

Ceiling-Mounted 8-Stream WiFi 7 Access Point with 10 GbE Uplink
Deliver high-performance wireless connectivity with this ceiling- or wall-mounted WiFi 7 access point featuring 8 spatial streams, 6 GHz support, real-time spectral analysis, and multi-gigabit Ethernet up to 10 GbE.
Key Features
-
WiFi 7 with 6 GHz support for next-generation wireless performance
-
8 spatial streams for high-capacity, efficient data throughput
-
Coverage up to 160 m² (1,750 ft²)
-
Supports 500+ client devices
-
Real-time spectral analysis for enhanced channel selection
-
Zero-wait DFS and advanced radio management
-
Ceiling and wall mounting (Lite Mount included)
-
Powered via PoE++
-
10 GbE RJ45 uplink with 10/5/2.5/1 GbE support
Performance & Wireless Technology
-
WiFi Standard: WiFi 7 (802.11be)
-
Spatial Streams: 8
-
Coverage Area: 160 m² (1,750 ft²)
-
Max. Client Count: 500+
-
Max. BSSIDs: 8 per radio
-
Wireless Meshing: Yes
-
Band Steering: Yes
-
Zero-Wait DFS: Yes
-
Advanced Radio Management: Yes
-
Real-Time Spectral Analysis: Yes
MIMO Configuration
-
6 GHz: 2 x 2 (DL/UL MU-MIMO)
-
5 GHz: 4 x 4 (DL/UL MU-MIMO)
-
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Maximum Data Rates
-
6 GHz: 5.8 Gbps (BW320)
-
5 GHz: 8.6 Gbps (BW240)
-
2.4 GHz: 688 Mbps (BW40)
Antenna Gain
-
6 GHz: 6 dBi
-
5 GHz: 6 dBi
-
2.4 GHz: 4 dBi
Max. TX Power
-
6 GHz: 24 dBm
-
5 GHz: 29 dBm
-
2.4 GHz: 23 dBm
Supported WiFi Standards & Data Rates
802.11be (WiFi 7)
- 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/320)
- 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0–MCS13, NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
- 7.3 Mbps to 4.8 Gbps (MCS0–MCS11, NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps (MCS0–MCS9, NSS1/2/3/4, VHT 20/40/80/160)
802.11n
- 6.5 Mbps to 600 Mbps (MCS0–MCS31, HT 20/40)
Channel Bandwidth Support
- HT 20/40 MHz
- VHT 20/40/80/160 MHz
- HE 20/40/80/160 MHz
- EHT 20/40/80/160/240/320 MHz
Security & Network Control
-
Passpoint (Hotspot 2.0): Yes
-
Captive Hotspot Portal: Yes
-
Private Pre-Shared Key (PPSK): Yes
-
WiFi Speed Limiting: Yes
-
Client Device Isolation: Yes
-
WiFi Schedules: Yes
-
RADIUS over TLS (RadSec): Yes
-
Dynamic RADIUS-assigned VLAN: Yes
Roaming & Management Enhancements
-
802.11v BSS Transition Management: Yes
-
802.11r Fast Roaming: Yes
-
802.11k Radio Resource Management (RRM): Yes
Hardware & Power
| Specification |
Detail |

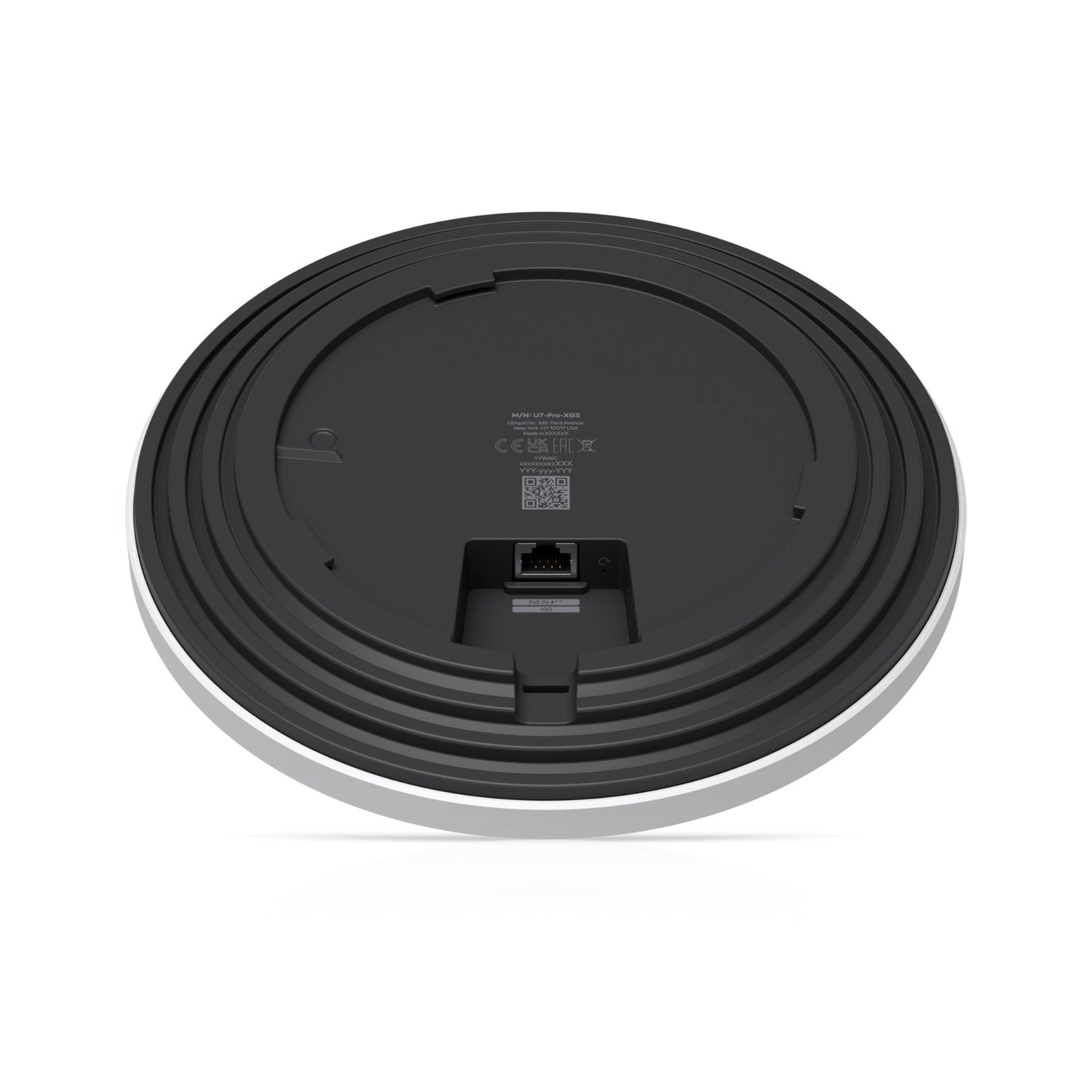

| Uplink / Interface |
(1) 10 GbE RJ45 port |
| Supported Speeds |
10/5/2.5/1 GbE |
| Power Method |
PoE++ |
| Max. Power Consumption |
29 W |
| Supported Voltage Range |
42.5 – 57 V DC |
| Management |
Ethernet |
| LEDs |
System |
Physical & Mounting
| Specification |
Detail |
| Mounting |
Ceiling, Wall (Lite Mount Included) |
| Dimensions |
Ø 215 x 32.5 mm (Ø 8.5 x 1.3") |
| Weight |
800 g (1.8 lb) |
| Enclosure Material |
UV-stabilized polycarbonate, aluminum alloy |
| Mount Material |
Stainless steel (SUS304), galvanized steel (SGCC) |
Certifications
