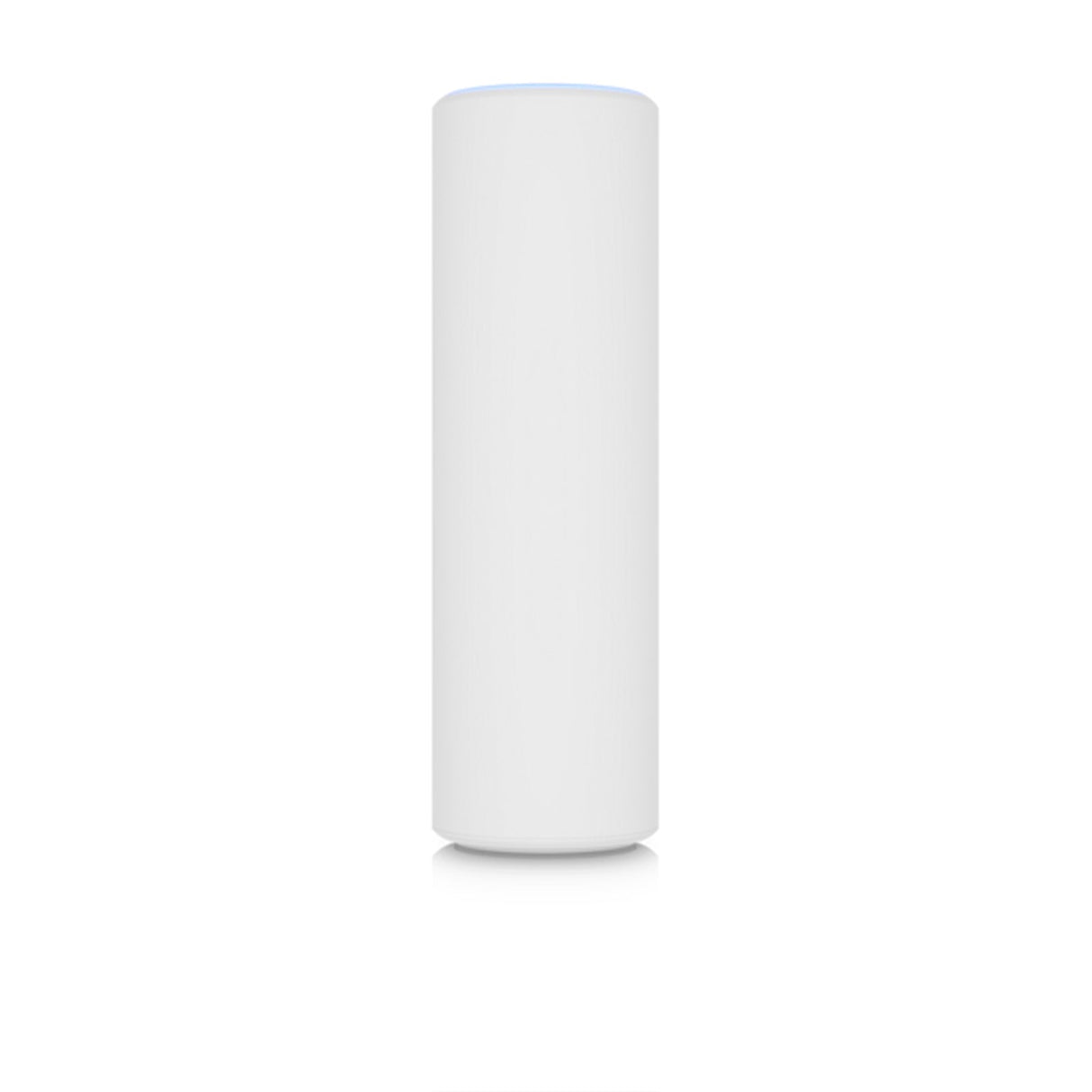

U6 Mesh WiFi 6 Access Point – Indoor/Outdoor 4x4 Mesh
The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point designed for indoor and outdoor mesh applications. It delivers best-in-class signal meshing to enhance wireless coverage for both home and enterprise networks.
With dual-band WiFi 6 technology, the U6 Mesh reaches an aggregate throughput of up to 5.3 Gbps using its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) radios. It also supports full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and enable faster data transfer.
The sleek, discreet design allows the U6 Mesh to blend seamlessly into home or office environments, while its IPX5-rated waterproof housing makes it rugged enough for reliable outdoor operation. This plug-and-play access point is built to quickly extend your wireless signal, providing full, seamless coverage and high-quality WiFi connectivity.
Setup can be completed in minutes and the device can be fully managed using the UniFi Network web application or mobile app.
Key Features
- Indoor/outdoor WiFi 6 (802.11ax) access point
- 4x4 MU-MIMO and OFDMA on 5 GHz
- 2x2 MIMO on 2.4 GHz
- Aggregate throughput up to 5.3 Gbps
- Full 4x4 MIMO with 160 MHz channels
- Designed for mesh applications
- IPX5-rated waterproof housing
- Plug-and-play deployment
- Managed via UniFi Network web application or mobile app
- Discreet, modern design suitable for home or office
Specifications
| Category |
Specification |
| WiFi Standard & Features |
|
| Networking standards |
IEEE 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Frequency band |
2.4 – 5 GHz |
| 2.4 GHz support |
Yes |
| 5 GHz support |
Yes |
| Maximum data rate (2.4 GHz) |
573.5 Mbit/s |
| Maximum data rate (5 GHz) |
4800 Mbit/s |
| Maximum data transfer rate |
4800 Mbit/s |
| Mesh & Management |
|
| Designed for mesh |
Yes |
| Management |
UniFi Network web application or mobile app |
| Quality of Service (QoS) |
Yes |
| VLAN support |
Yes (IEEE 802.1Q) |
| Wired Networking |
|
| Ethernet LAN data rates |
1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|
| Security algorithms |
WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Power |
|
| Power consumption (max) |
11.4 W |
| Power over Ethernet (PoE) |
Yes (IEEE 802.3af) |
| AC input voltage |
44 – 57 V |
| Input current |
0.32 A |
| Design & Durability |
|
| Placement options |

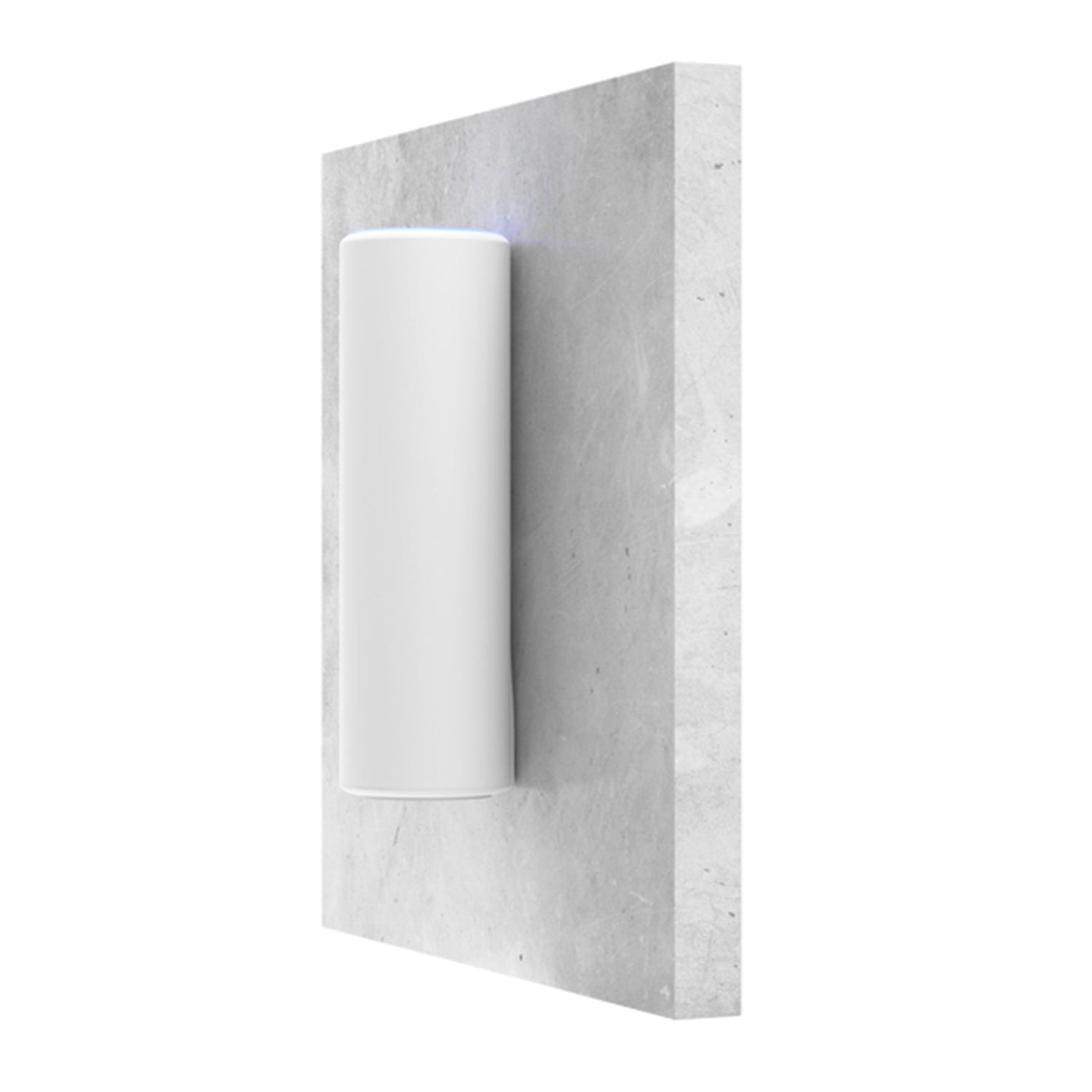

Ceiling, Pole, Table, Wall |
| Product colour |
White |
| Housing material |
Aluminium, Plastic |
| International Protection |
IPX5 |
| Interfaces & Indicators |
|
| Bluetooth |
Yes |
| Reset button |
Yes |
| LED indicators |
Yes |
| Antenna |
|
| Antenna type |
Internal |
| Antenna gain (max) |
5 dBi |
| Other |
|
| Harmonized System (HS) code |
85176990 |
The U6 Mesh combines powerful WiFi 6 performance, flexible deployment options, and outdoor-ready durability, making it an ideal choice for extending and strengthening wireless coverage across a wide range of environments.
